Description

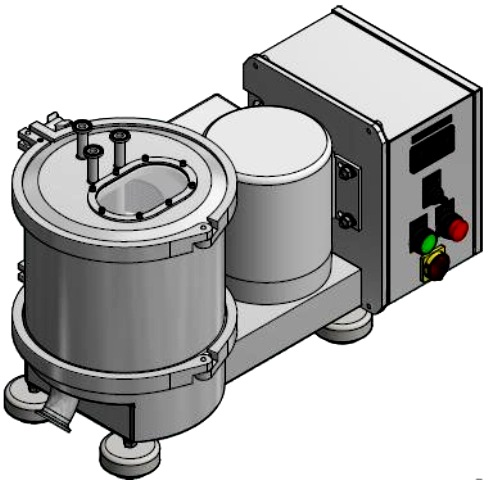

The Western States SLC-5000 6 x 3.6 lab perforate basket centrifuge is designed for efficient separation of solids from liquids in laboratory environments. With a maximum bowl speed of 5000 RPM and a force of 2130 x G, this centrifuge is capable of handling a variety of applications that require precise and reliable performance. The unit features a solids capacity of 56.5 cubic inches and a filtration area of 68 square inches, making it suitable for processing different types of slurries. The Stock Number and Serial Number can be provided upon request for tracking and warranty purposes.

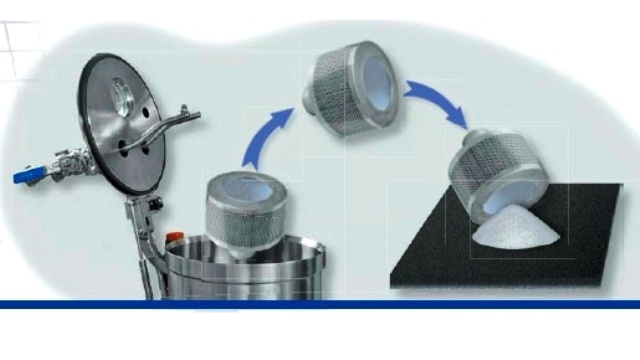

Constructed entirely from 316L stainless steel, the SLC-5000 meets cGMP standards, ensuring compliance with stringent sanitary requirements. The design includes a basket that lifts off the spindle without the need for tools, facilitating easy maintenance and cleaning. The centrifuge is equipped with a .5 HP motor, operating on a 110V single-phase power supply, and features a variable frequency drive (VFD) for adjustable speed control. Additional features include a slurry feed with a .5-inch ball valve, a wash/spray line with tri-clamp fittings, and a 3-inch sight glass with a 20W sanitary light for monitoring the process.
Primary Use
Used for separating solids from liquids in laboratory applications.
Technical Specifications
- Bowl Speed: 5000 RPM
- G-Force: 2130 x G
- Solids Capacity: 56.5 cu in
- Filtration Area: 68 sq in
- Motor Power: 0.5 HP
- Power Supply: 110/1/60/12A
- Construction Material: 316L Stainless Steel
- Control Type: NEMA 12 with VFD
- Lid Mechanism: Twin gas springs with interlock
Key Features
- Sanitary Design

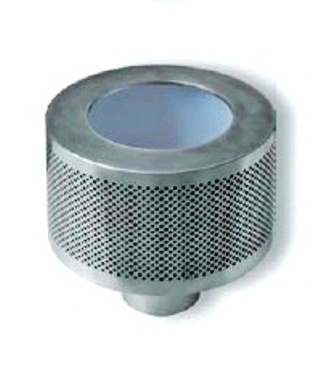

- Tool-Free Basket Removal
- Variable Frequency Drive
- Gas Spring Lid Mechanism
- Integrated Sight Glass
Applications
- Laboratory research
- Chemical analysis
- Biotechnology processes
- Pharmaceutical testing
- Food and beverage processing
Product Details
The SLC-5000 features a vapor-tight design and is equipped with a sanitary light for visibility during operation. The unit can be paired with a stainless steel cart that includes locking casters for mobility.
