Description

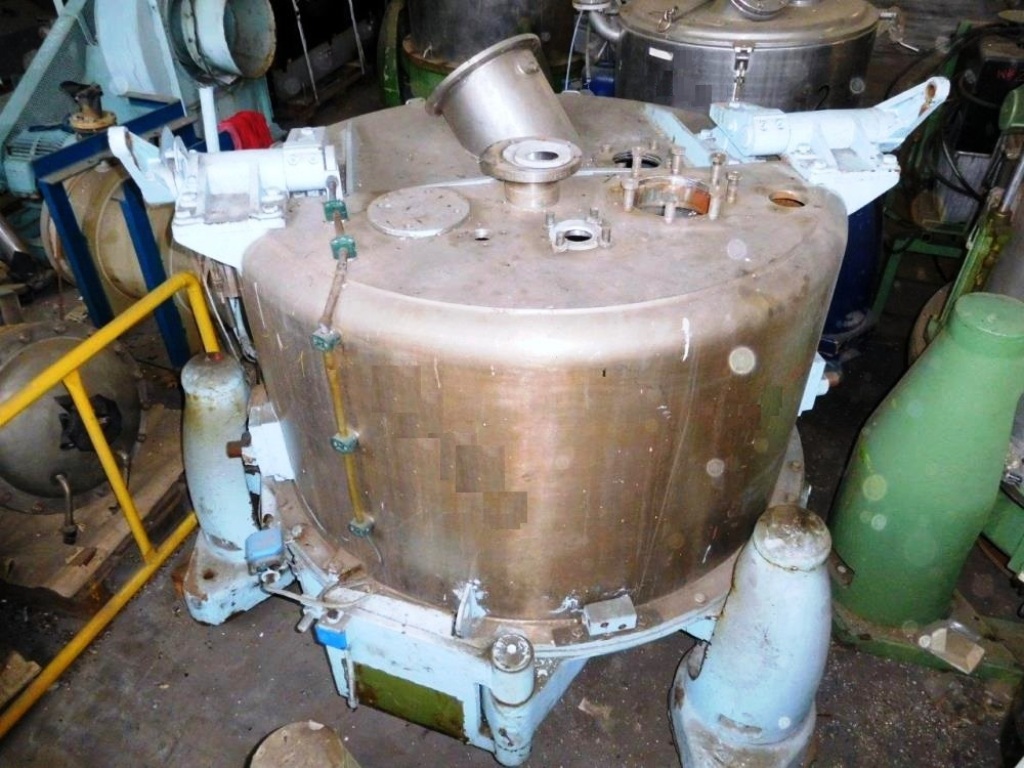

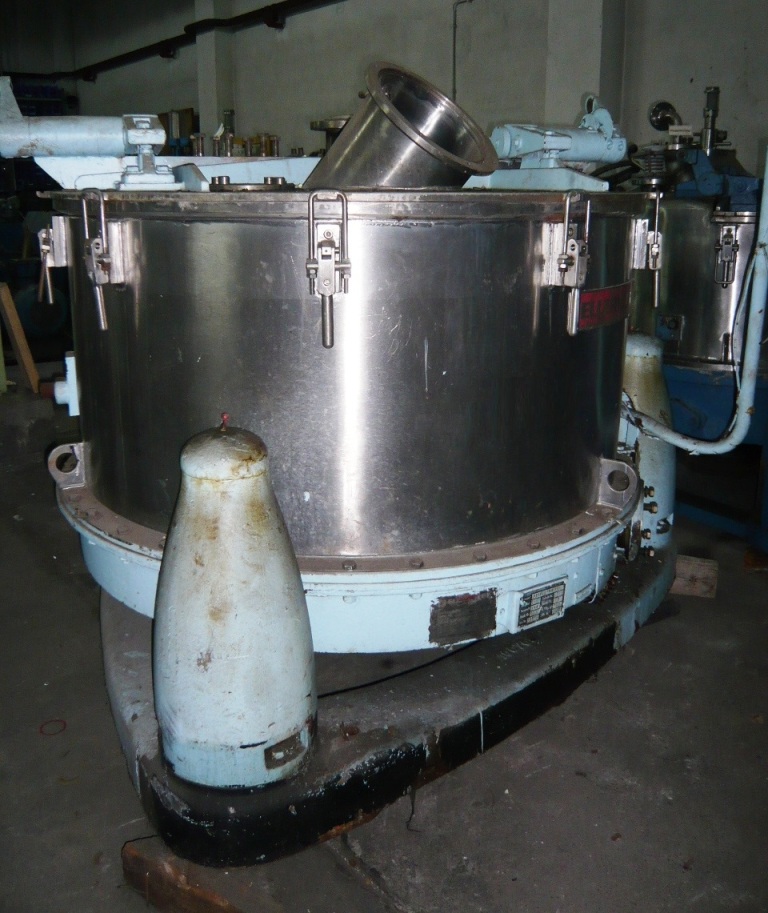

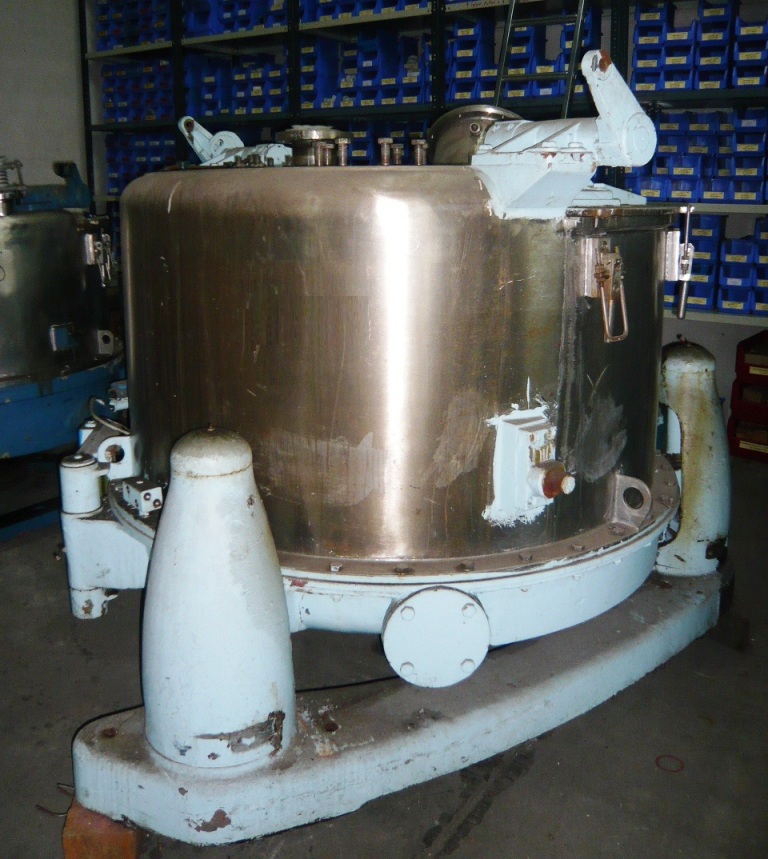

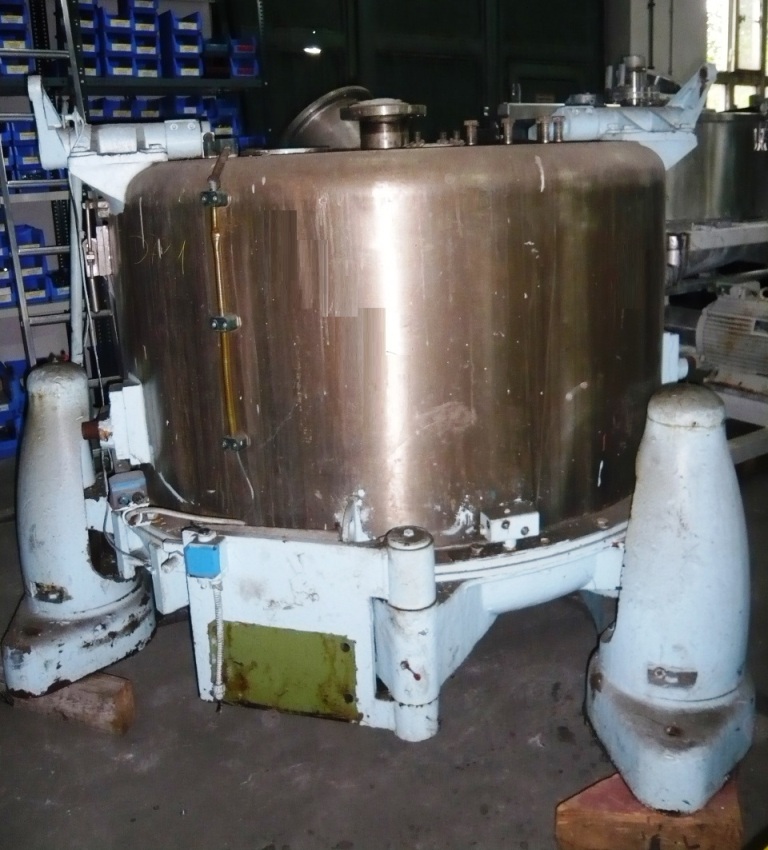

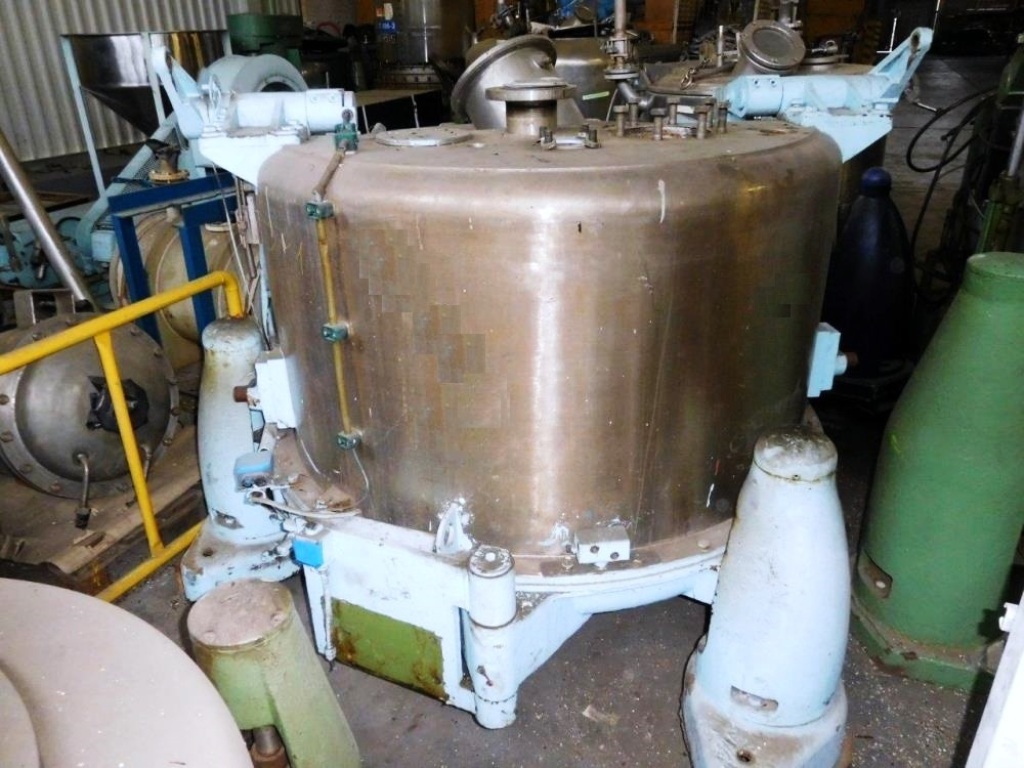

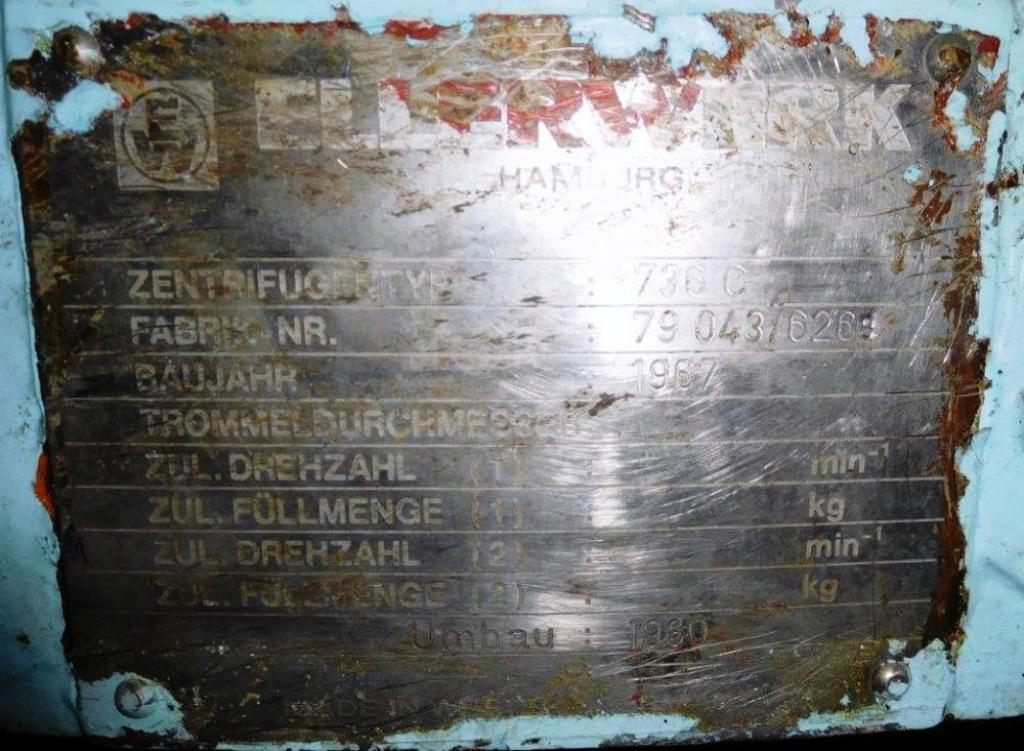

The Ellerwerk 736 C perforate basket centrifuge is a robust piece of equipment designed for efficient solid-liquid separation in various industrial applications. With a serial number of 79043/6263, this centrifuge features a maximum bowl speed of 950 RPM and is capable of generating a centrifugal force of 626 x G. The bowl has a diameter of 1250 mm and a length of 500 mm, providing a substantial filtration area of 1.96 square meters. This model is particularly suited for processes requiring a working volume of up to 250 liters and can handle a maximum load of 388 kg, making it suitable for medium to large batch operations.

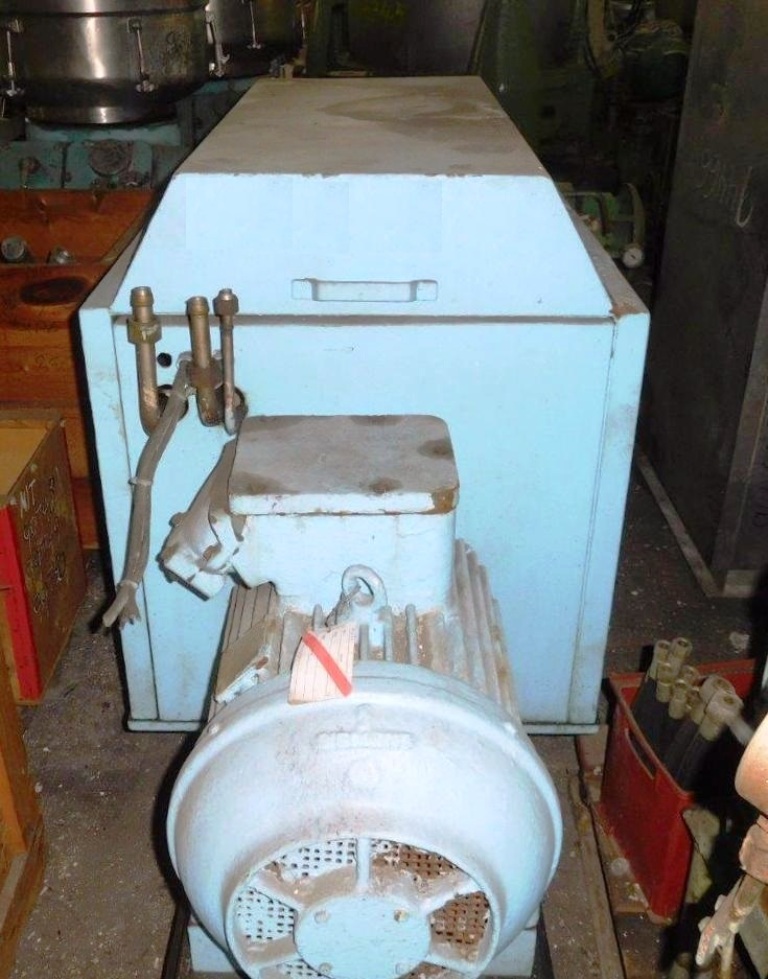

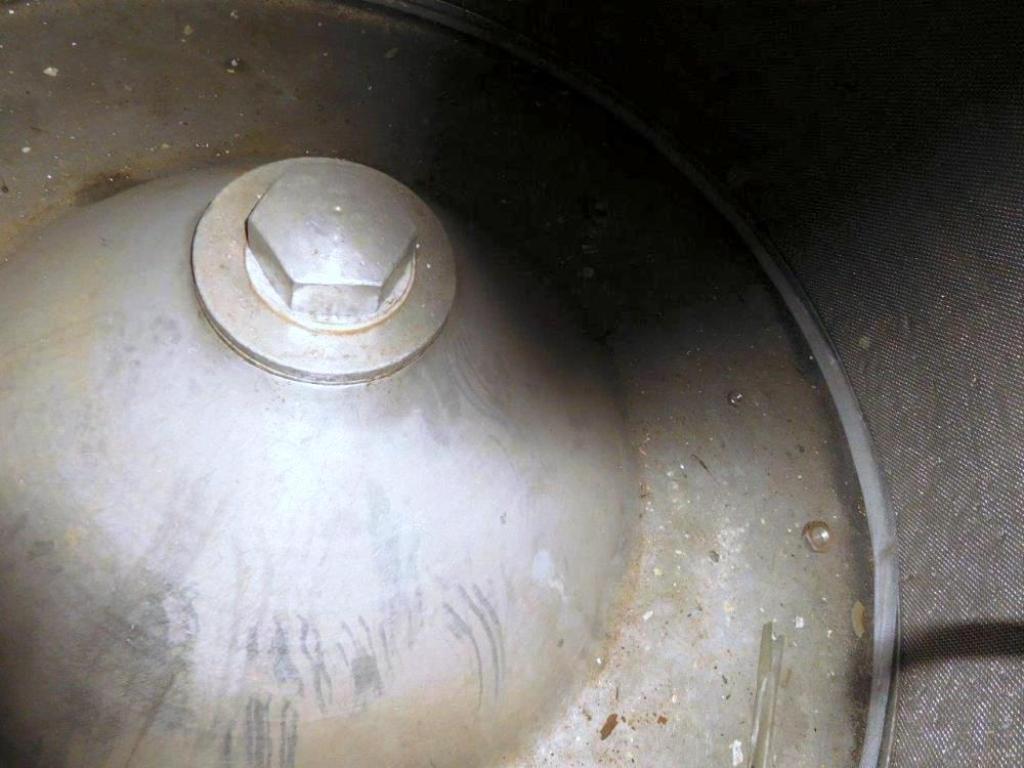

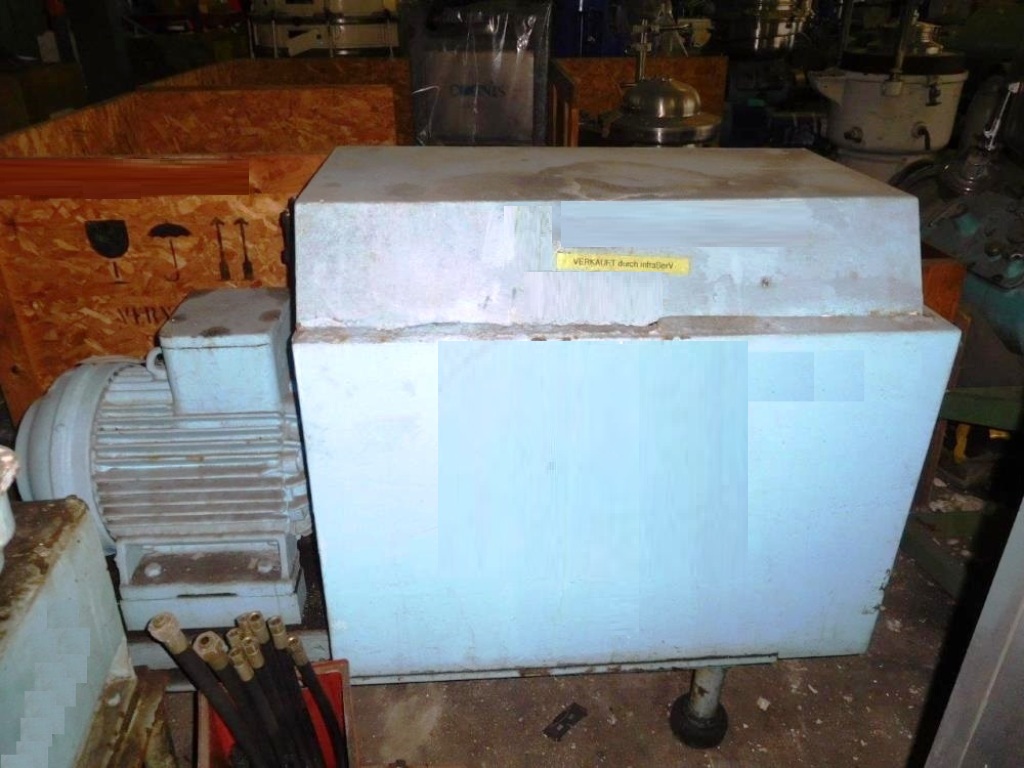

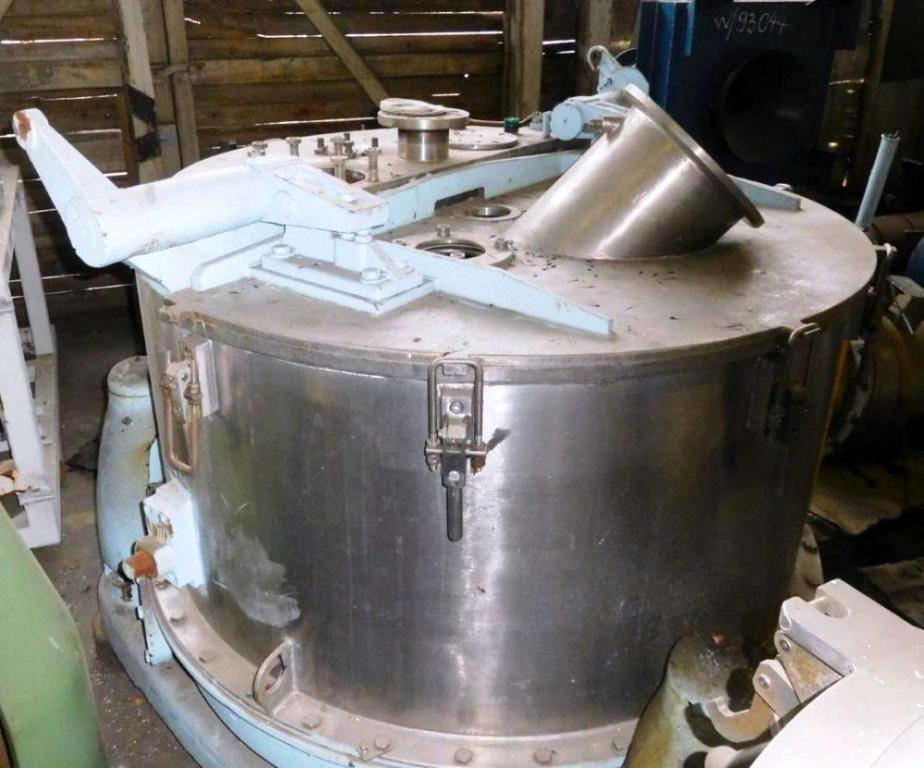

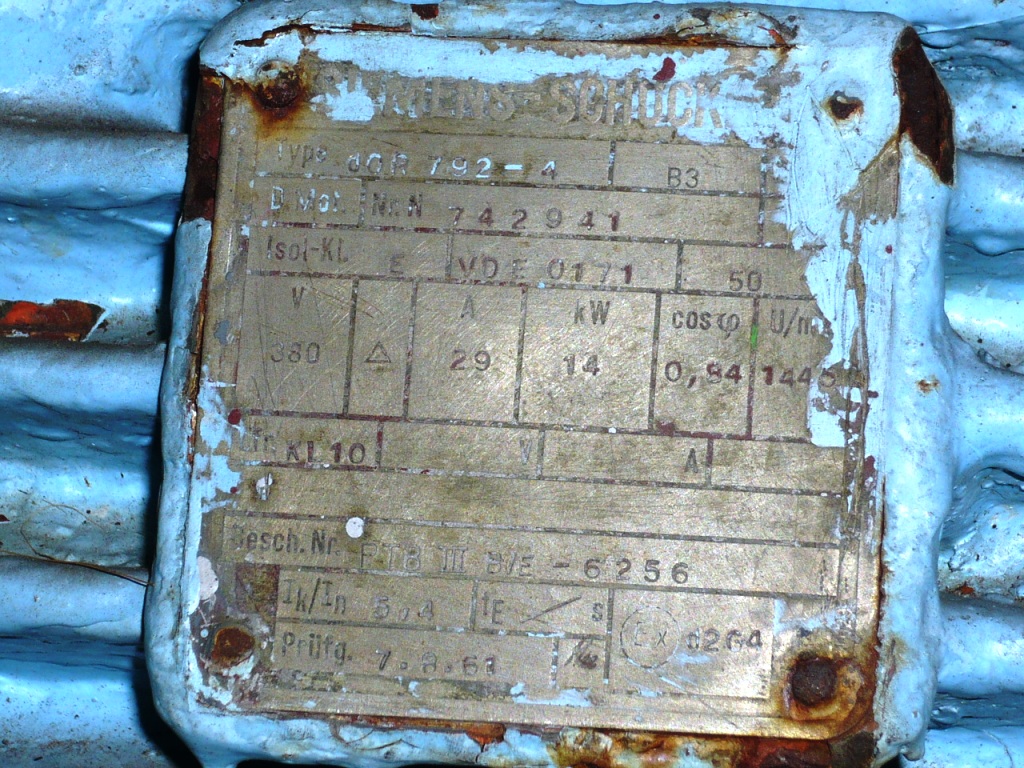

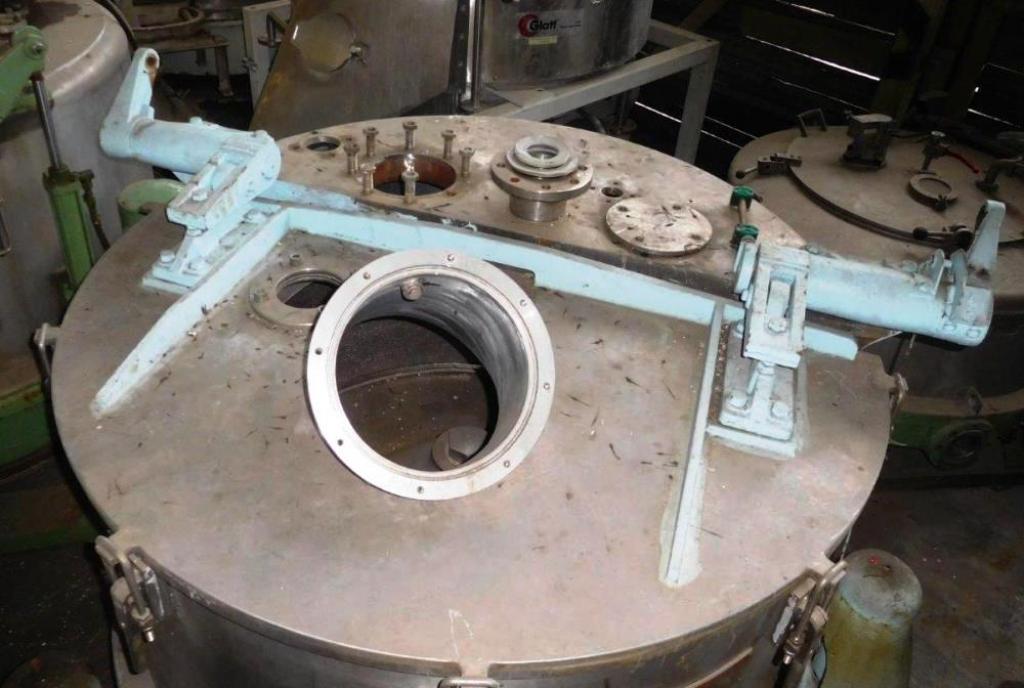

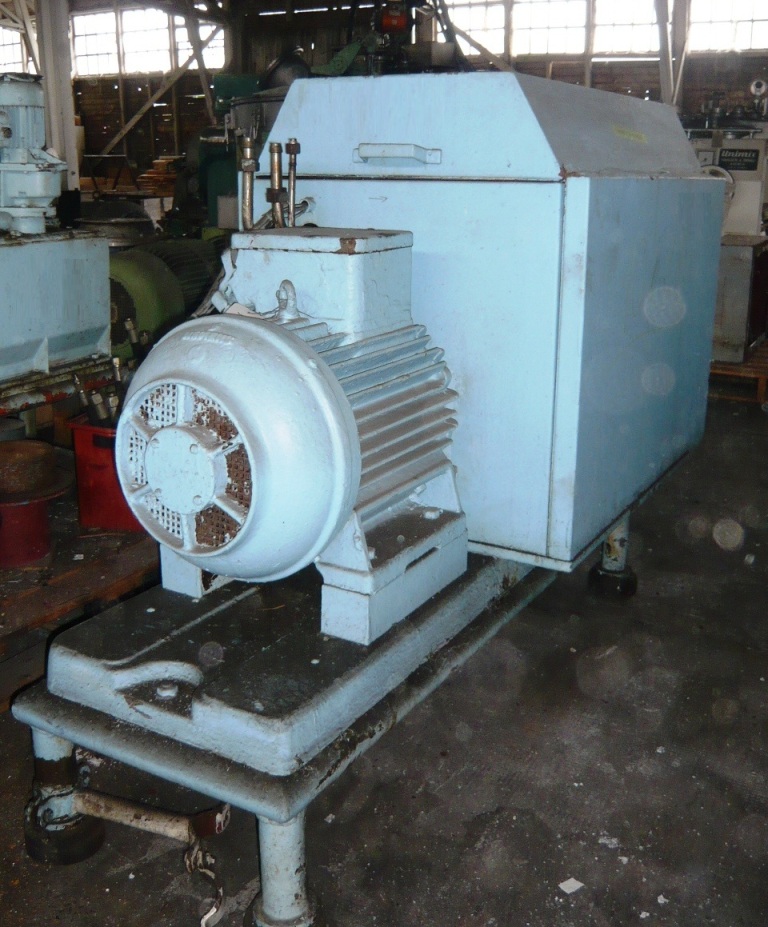

Constructed from 316 stainless steel, the Ellerwerk 736 C is designed to withstand corrosive environments while maintaining structural integrity. The gas-tight design enhances safety during operation, and the top unload feature facilitates easy discharge of the processed materials. The hinged top cover allows for convenient access to the bowl for maintenance and cleaning. This centrifuge is powered by a 14 kW explosion-proof motor, operating at 380V/3/50Hz with a speed of 1440 RPM, which is mounted on a hydraulic powerpack. The inclusion of sight glass, feed, and rinse pipes further enhances its operational capabilities.
Primary Use
Used for separating solids from liquids in various industrial processes.
Technical Specifications
- Bowl Speed: 950 RPM
- Centrifugal Force: 626 x G
- Bowl Diameter: 1250 mm
- Bowl Length: 500 mm
- Filtration Area: 1.96 sqM
- Working Volume: 250 L
- Max Load: 388 kg
- Motor Power: 14 kW
- Motor Type: Explosion-proof
- Power Supply: 380V/3/50Hz
Key Features
- Construction Material
- Bowl Design
- Motor Specifications
- Operational Features
- Maintenance Accessibility
Applications
- Chemical processing
- Pharmaceutical manufacturing
- Food processing
- Wastewater treatment
- Biotechnology
Product Details
The Ellerwerk 736 C features a durable construction with 316 stainless steel, ensuring resistance to corrosion. Its gas-tight design and top unload capability enhance operational safety and efficiency. The centrifuge is equipped with a hydraulic powerpack for reliable motor operation.
