Delta Separations CUP-15 ethanol extractor, 316L SS.

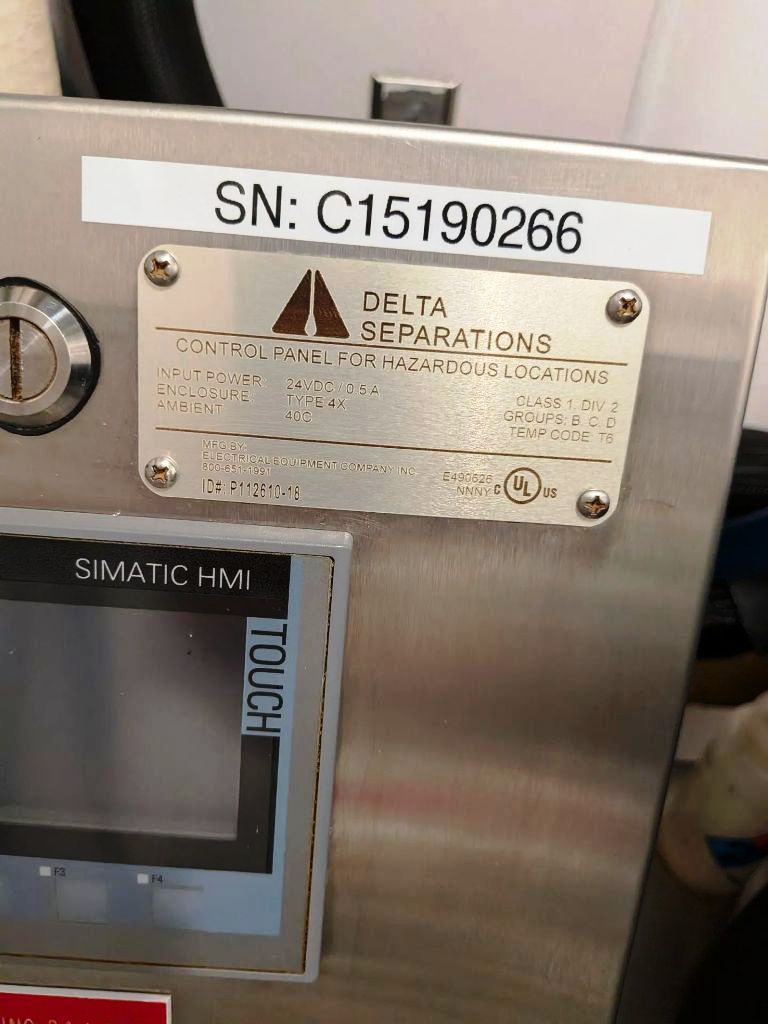

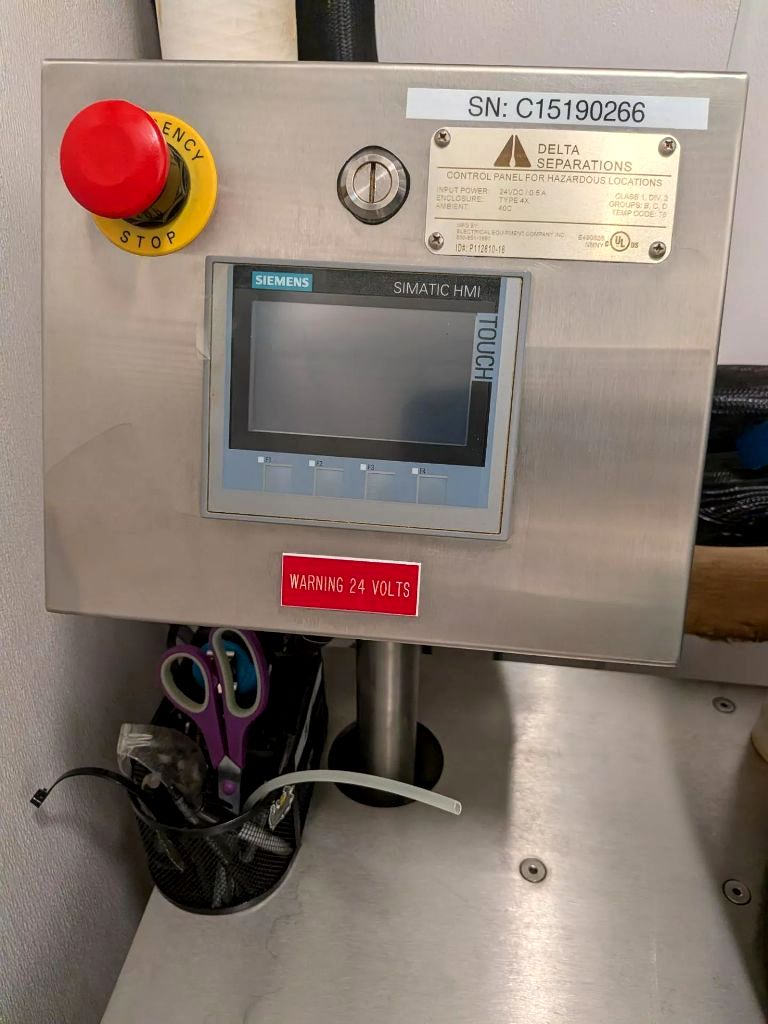

Max bowl speed 1500 RPM, rated @ 15 LB biomass per batch, low temp -40C max, sanitary design, vacuum jacketed insulation layer, 2.2 KW XP motor 230/3/60, reinforced sight glass, tri-clamp fitting for feed and drain ports, Siemens control panel with VFD, mounted on a portable stand. Very good condition.

The Delta Separations CUP-15 ethanol extractor, 316L SS. is engineered for high efficiency and performance in the extraction of valuable compounds from biomass. With a maximum bowl speed of 1500 RPM, this extractor is capable of processing up to 15 pounds of biomass per batch, making it an ideal choice for both small-scale operations and larger production facilities. The low-temperature capability of -40°C ensures that sensitive compounds are preserved during extraction, which is critical for maintaining the quality and potency of the final product. Its sanitary design, complemented by a vacuum jacketed insulation layer, minimizes the risk of contamination and enhances thermal efficiency, making it suitable for industries that demand high standards of cleanliness and safety in their processes.

The Delta Separations CUP-15 is equipped with a robust 2.2 KW explosion-proof motor, operating at 230V, 3-phase, 60Hz, which provides reliable power for continuous operation. The reinforced sight glass allows operators to monitor the extraction process without compromising safety, while the tri-clamp fittings for both feed and drain ports facilitate easy connection and disconnection, streamlining the workflow. The Siemens control panel with variable frequency drive (VFD) offers precise control over the motor speed, enabling operators to optimize the extraction process according to the specific requirements of different biomass materials. Mounted on a portable stand, this extractor can be easily relocated within a facility, providing flexibility in production layout and workflow management.

In addition to its impressive technical specifications, the Delta Separations CUP-15 ethanol extractor, 316L SS. is designed for ease of maintenance. Its durable construction from 316L stainless steel ensures longevity and resistance to corrosion, making it a valuable investment for any extraction operation. The combination of advanced engineering, user-friendly features, and high-quality materials makes this extractor a top choice for businesses looking to enhance their extraction capabilities while maintaining compliance with industry standards.
