Sharples P3400 XP oilfield skid, 316 SS.

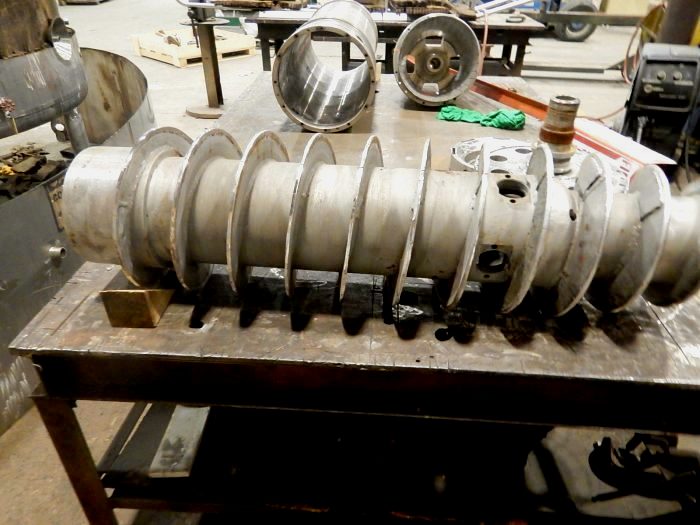

Max bowl speed 4000 RPM, adjustable liquid ports, hogged-out cake ports with wear liners and flingers. 4.25" single lead hardsurfaced conveyor, 50 HP XP motor 460/3/60/1750 RPM, 52:1 planetary gearbox with torque arm assembly, guards, vibration switch/isolators, feed tube grease lubricated bearings, chutes and XP controls, unitized on oilfield skid. Very good condition.

The Sharples P3400 XP oilfield skid, 316 SS. is engineered for optimal performance in demanding oilfield applications. With a maximum bowl speed of 4000 RPM, this equipment is designed to efficiently separate solids from liquids, ensuring a high-quality output that meets industry standards. The adjustable liquid ports allow for versatile operation, accommodating various fluid types and flow rates, while the hogged-out cake ports are equipped with wear liners and flingers to enhance durability and extend the life of the machine. This attention to detail in design not only improves the operational efficiency but also minimizes maintenance requirements, making it a reliable choice for oilfield operations.

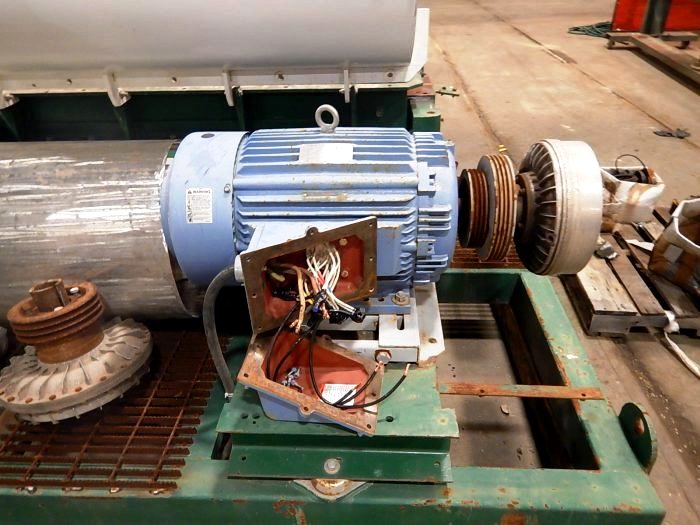

At the heart of the Sharples P3400 XP is a robust 50 HP XP motor, rated at 460/3/60/1750 RPM, which provides the necessary power to handle challenging separation tasks. Coupled with a 52:1 planetary gearbox and a torque arm assembly, this system ensures smooth operation and optimal torque delivery, even under heavy loads. The inclusion of guards and vibration switch/isolators enhances safety and operational integrity, reducing the risk of equipment failure due to excessive vibrations. Additionally, the feed tube features grease lubricated bearings, which contribute to lower friction and improved longevity of the components. The chutes and XP controls are designed for ease of use, allowing operators to monitor and adjust settings with minimal effort, thereby increasing productivity on the job site.

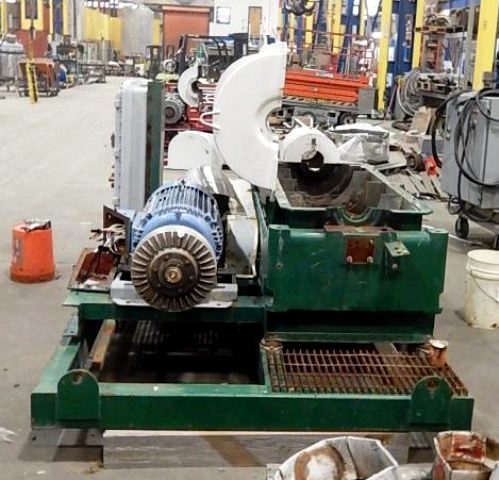

The entire assembly is unitized on an oilfield skid, which simplifies transportation and installation, making it ideal for mobile operations. This skid-mounted design not only provides stability during operation but also facilitates quick setup and teardown, essential for projects that require flexibility and efficiency. With its very good condition, the Sharples P3400 XP oilfield skid, 316 SS. represents a valuable investment for companies looking to enhance their oilfield processing capabilities while ensuring reliability and performance.
