Alfa-Laval OFSX 610 crude oil dehydrator mobile system.

Max bowl speed 6625 RPM, 8000 x G, rated @ 15,000 LPH, liquid phase discharged under pressure, concentrate discharged continuously, Optiphaser interface control system, can handle up to 2000 LPH solids. 50 HP XP motor 480/3/60/1750 RPM, collection tanks for oil and water/sediment, export pumps, control and VFD starter panels, tools, feed pump, pre-heater and automatic strainer, unitized on a 48' trailer. 2009 vintage. Very good condition. aka OFX5 and FOX 15 nozzle separator. Exclusive.

The Alfa-Laval OFSX 610 crude oil dehydrator mobile system is engineered for high efficiency and reliability in the challenging environment of crude oil processing. With a maximum bowl speed of 6625 RPM and a centrifugal force of 8000 x G, this system is capable of achieving a rated throughput of 15,000 liters per hour (LPH). The design allows for the liquid phase to be discharged under pressure, ensuring a continuous and efficient operation. The concentrate is also discharged continuously, which minimizes downtime and enhances productivity. The Optiphaser interface control system provides intuitive operation and monitoring, allowing operators to manage the system effectively while handling up to 2000 LPH of solids, making it a versatile solution for various crude oil dehydration applications.

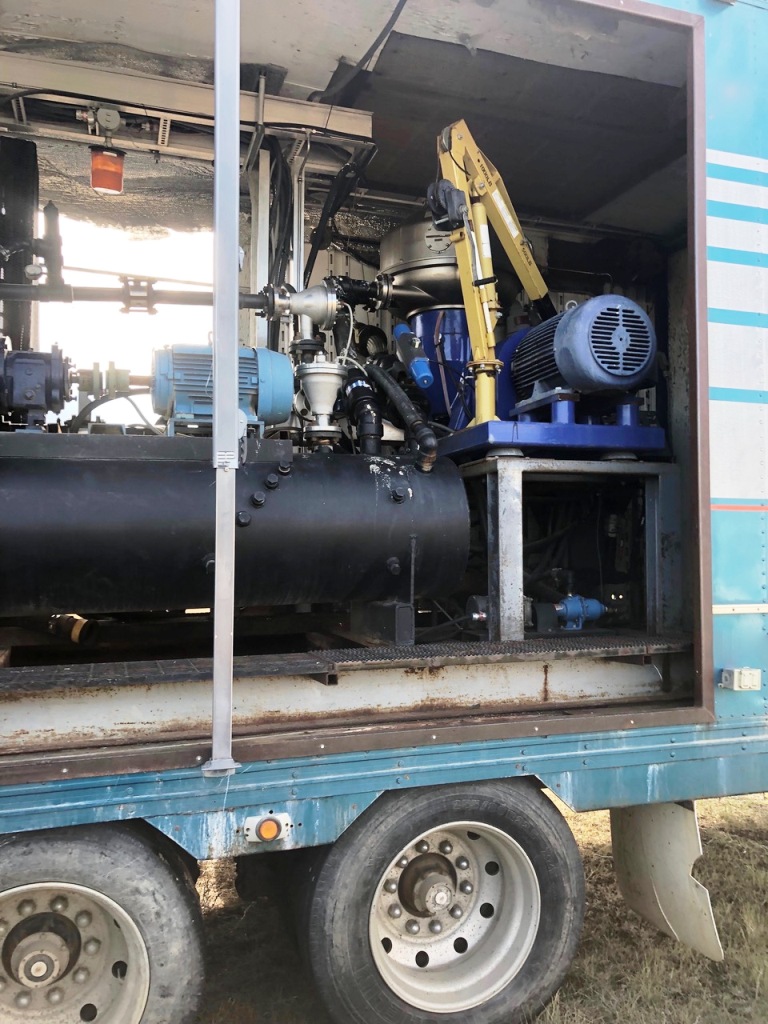

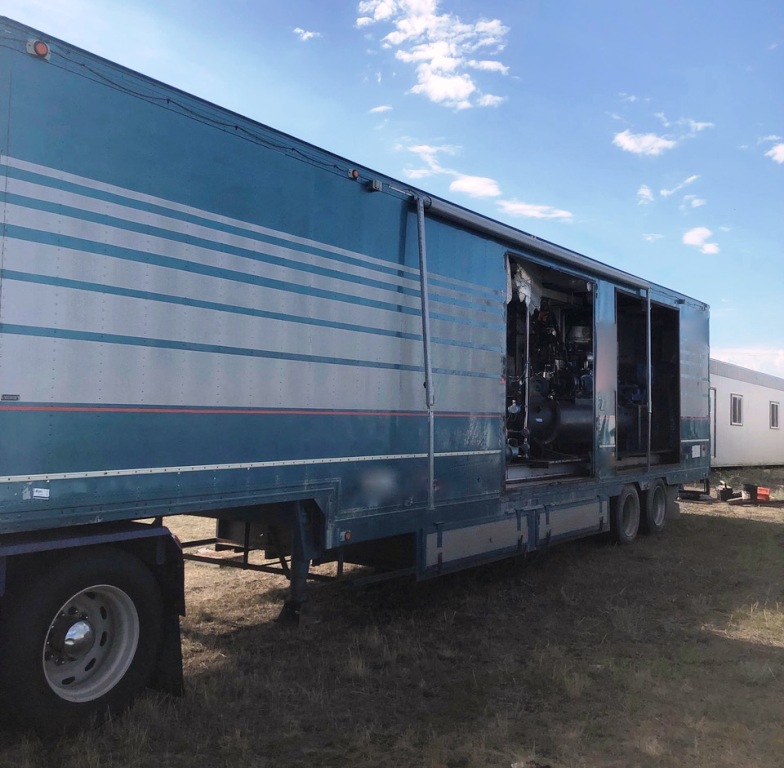

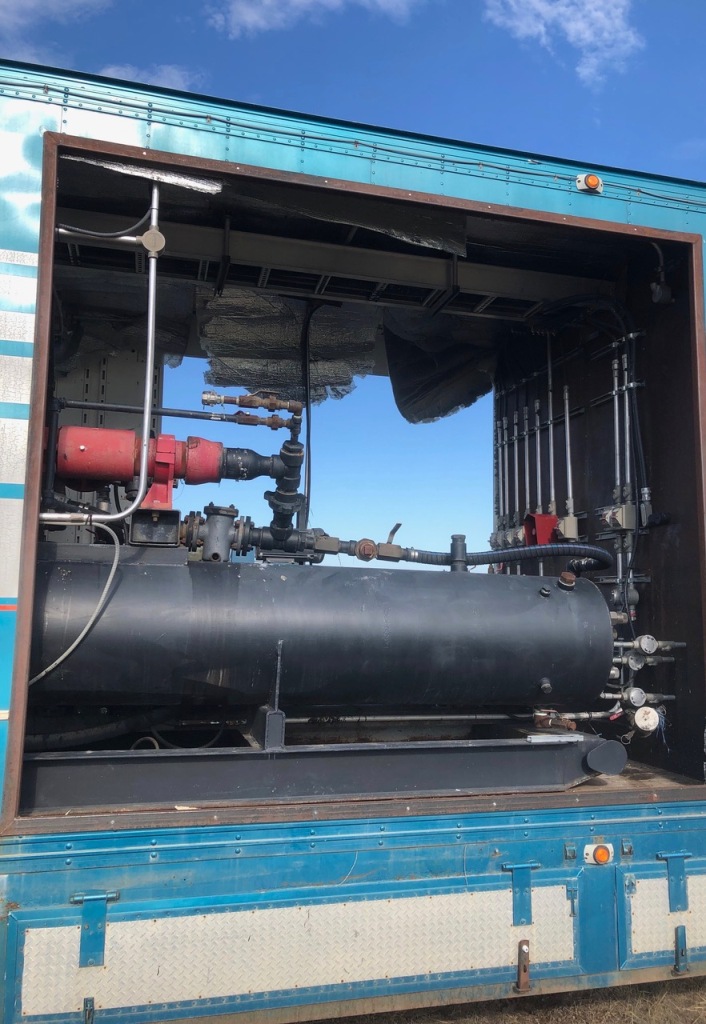

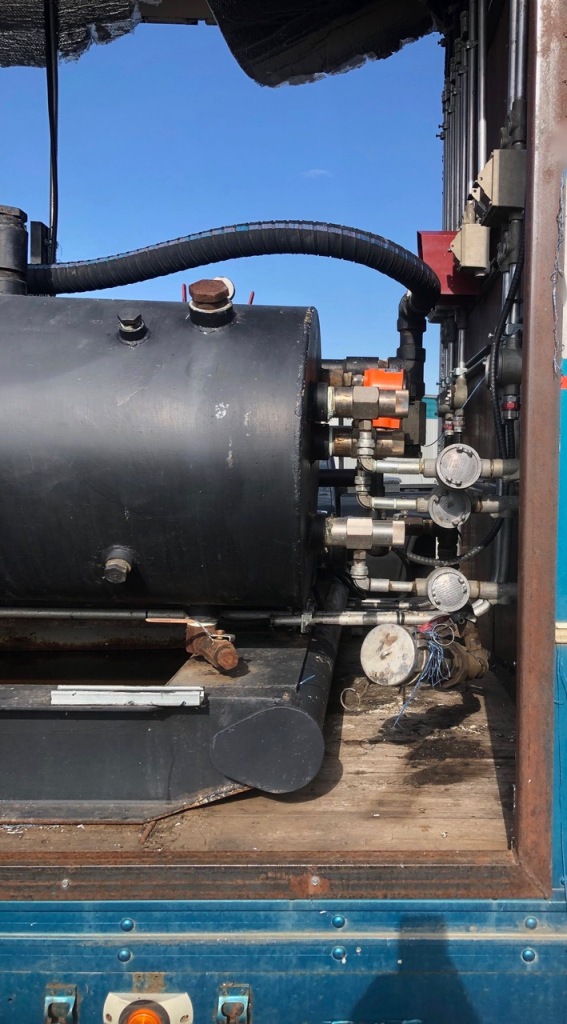

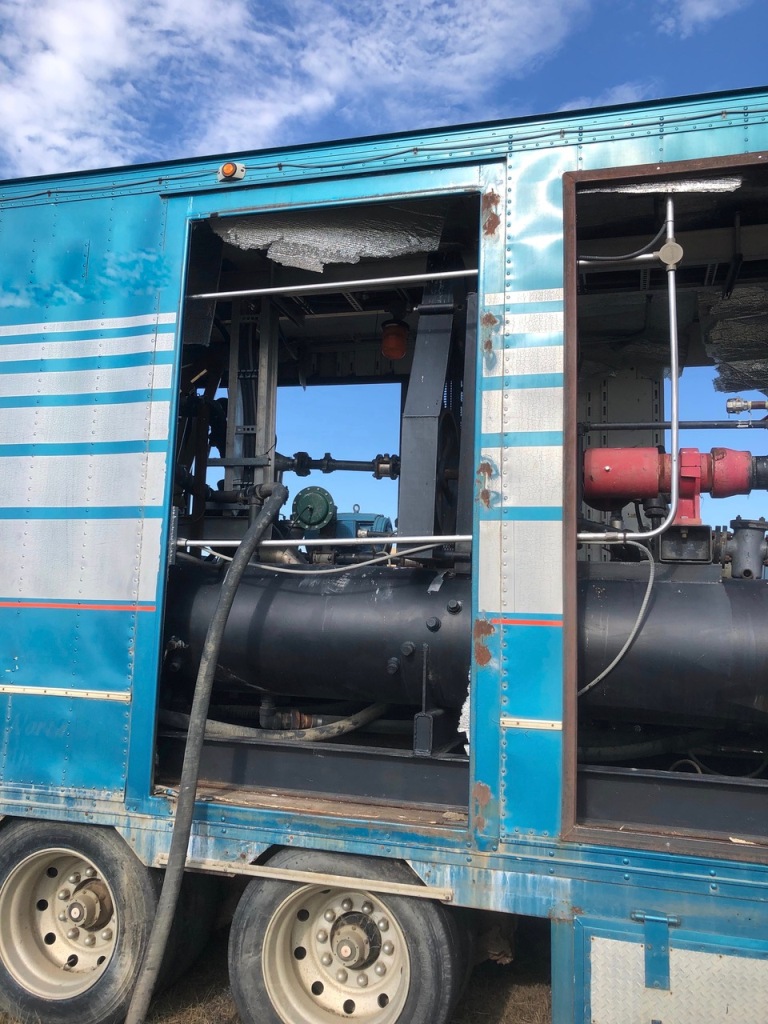

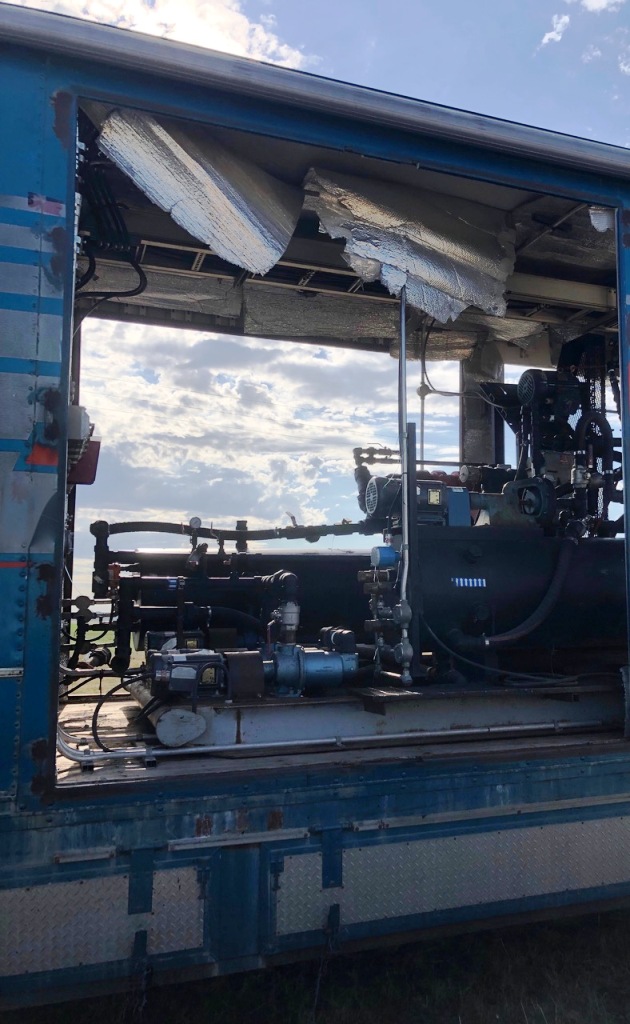

The Alfa-Laval OFSX 610 is powered by a robust 50 HP XP motor, operating at 480V, 3-phase, 60Hz, and 1750 RPM, ensuring that the system can handle demanding workloads with ease. The mobile unit is equipped with collection tanks for both oil and water/sediment, facilitating efficient separation and collection of byproducts. Additionally, the system includes export pumps, control and variable frequency drive (VFD) starter panels, tools, a feed pump, a pre-heater, and an automatic strainer, all unitized on a 48-foot trailer for easy transport and setup. This 2009 vintage unit is in very good condition, making it a valuable addition to any operation looking to enhance their crude oil processing capabilities. Known also as OFX5 and FOX 15 nozzle separator, this exclusive system combines advanced technology with practical design to deliver outstanding performance in the field.
