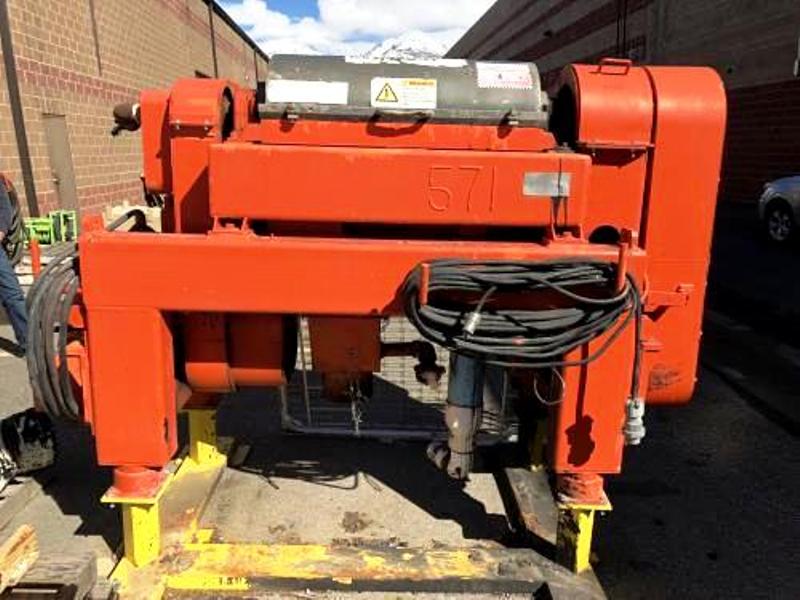

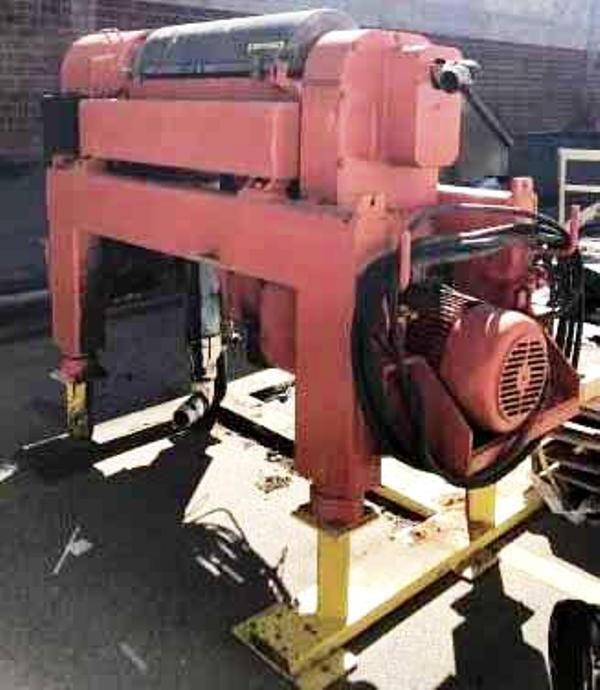

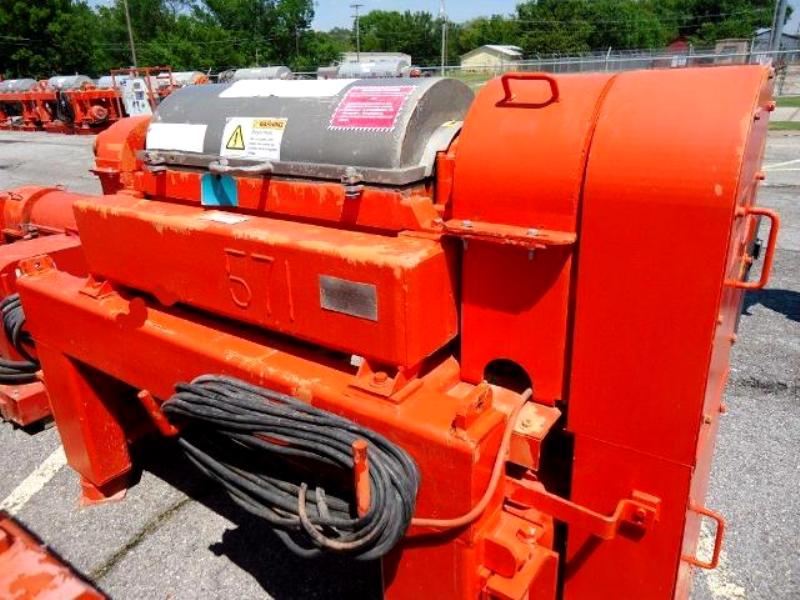

Alfa-Laval DMNX 414B-31G oilfield centrifuge, 316SS.

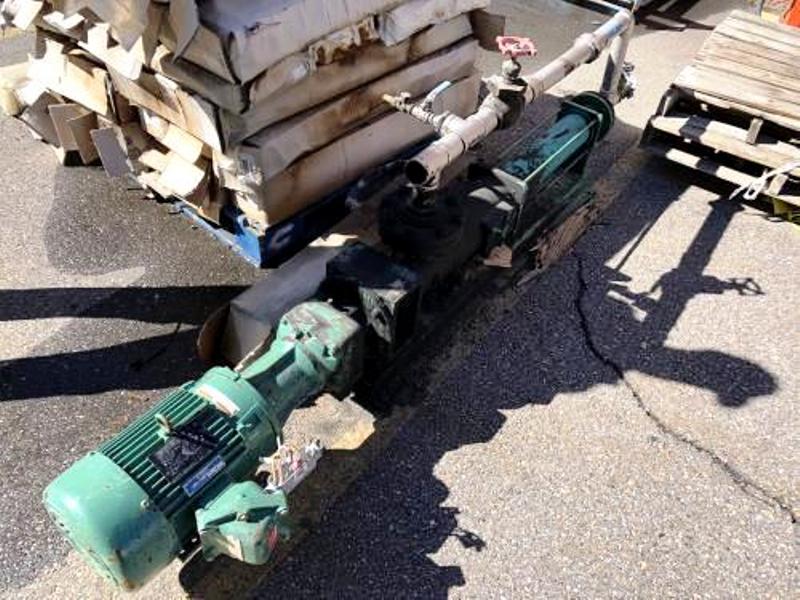

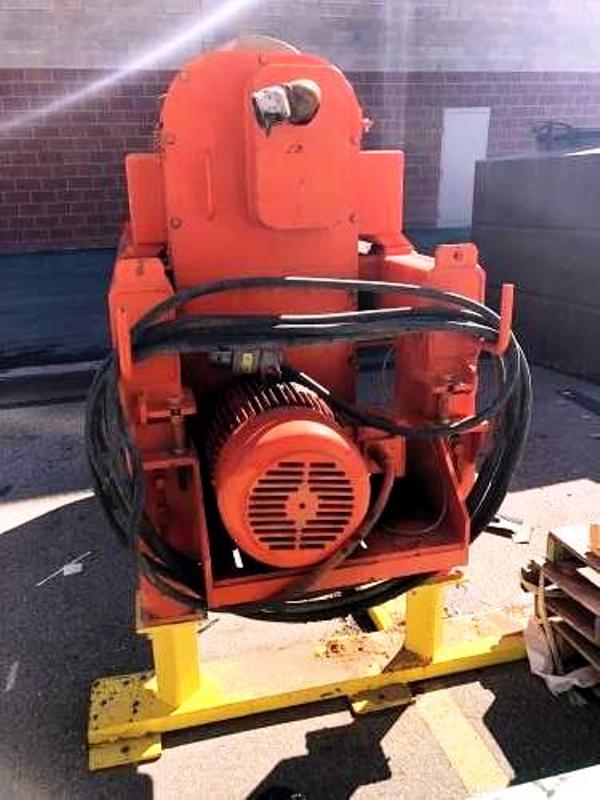

Max bowl speed 2700 RPM, 1450 G's, 14" x 34" bowl ID. 5" single lead hardsurfaced conveyor, 40 HP XP motor 460/3/60/1750 RPM, 7.5 HP backdrive, 350 kNm 57:1 planetary gearbox, clutch and limit switch, feed tube, guards, vibration isolators/switch and chutes, unitized on a stand with feed pump. 1981 vintage. Very good condition

The Alfa-Laval DMNX 414B-31G oilfield centrifuge, 316SS, is engineered for high-performance separation processes in the oil and gas industry. With a maximum bowl speed of 2700 RPM and generating forces of up to 1450 G's, this centrifuge is capable of efficiently separating solids from liquids, ensuring optimal recovery and purity of valuable resources. The bowl dimensions of 14" x 34" provide a substantial surface area for effective separation, while the 5" single lead hardsurfaced conveyor enhances the movement of separated solids, minimizing wear and extending operational life. The unit is powered by a robust 40 HP XP motor, which operates at 460V, 3-phase, 60 Hz, and 1750 RPM, ensuring reliable and consistent performance under demanding conditions. Additionally, the 7.5 HP backdrive provides necessary support for the conveyor system, enhancing the overall efficiency of the centrifuge's operation.

Constructed from high-quality 316 stainless steel, the Alfa-Laval DMNX 414B-31G is designed to withstand the harsh environments typically found in oilfield applications. This durable material not only offers excellent corrosion resistance but also ensures that the centrifuge maintains its structural integrity over time. The inclusion of a 350 kNm 57:1 planetary gearbox, along with a clutch and limit switch, provides precise control over the centrifuge's operation, allowing for adjustments to be made easily to suit specific processing needs. Safety features such as guards, vibration isolators, and a vibration switch are integrated into the design to protect both the equipment and personnel, ensuring a safe working environment. The unit is conveniently unitized on a stand with a feed pump, making installation and integration into existing systems straightforward and efficient. With its vintage from 1981, this centrifuge has been maintained in very good condition, making it a reliable choice for operators looking to enhance their separation processes.
