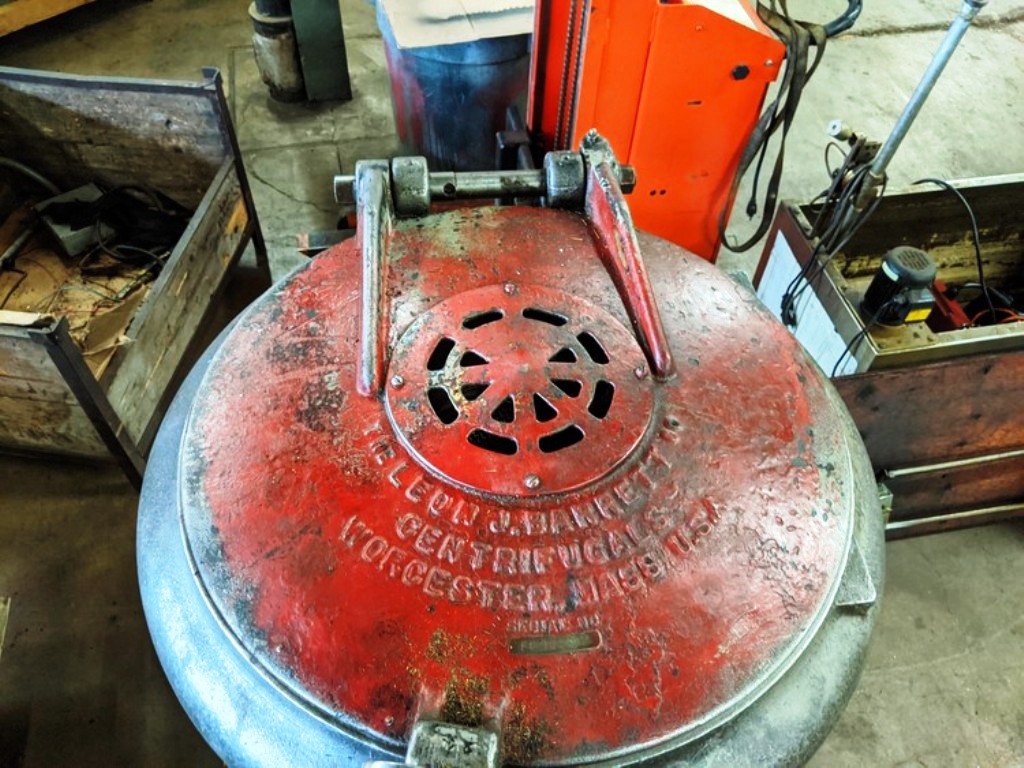

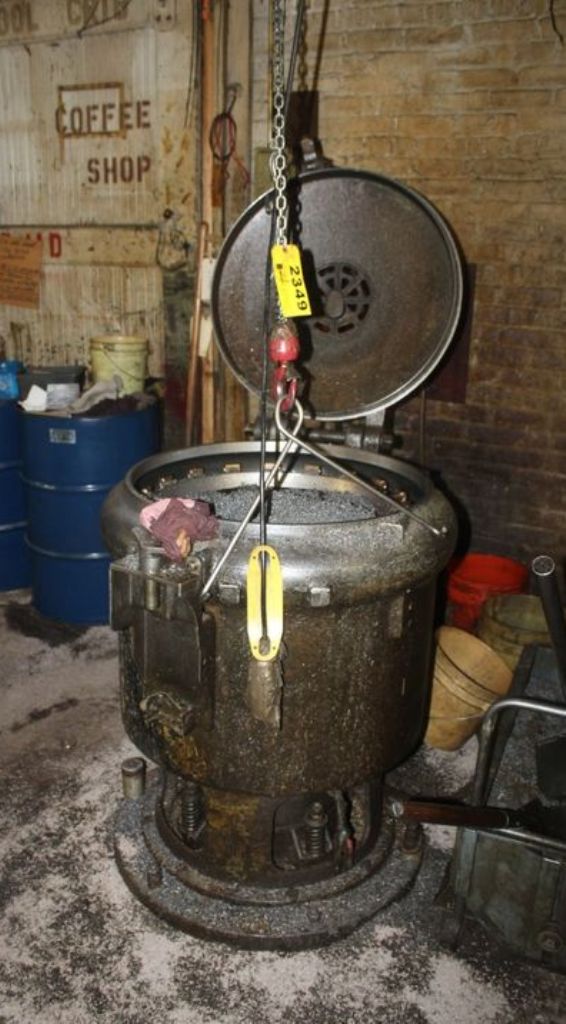

Barrett 402-E chip spinner.

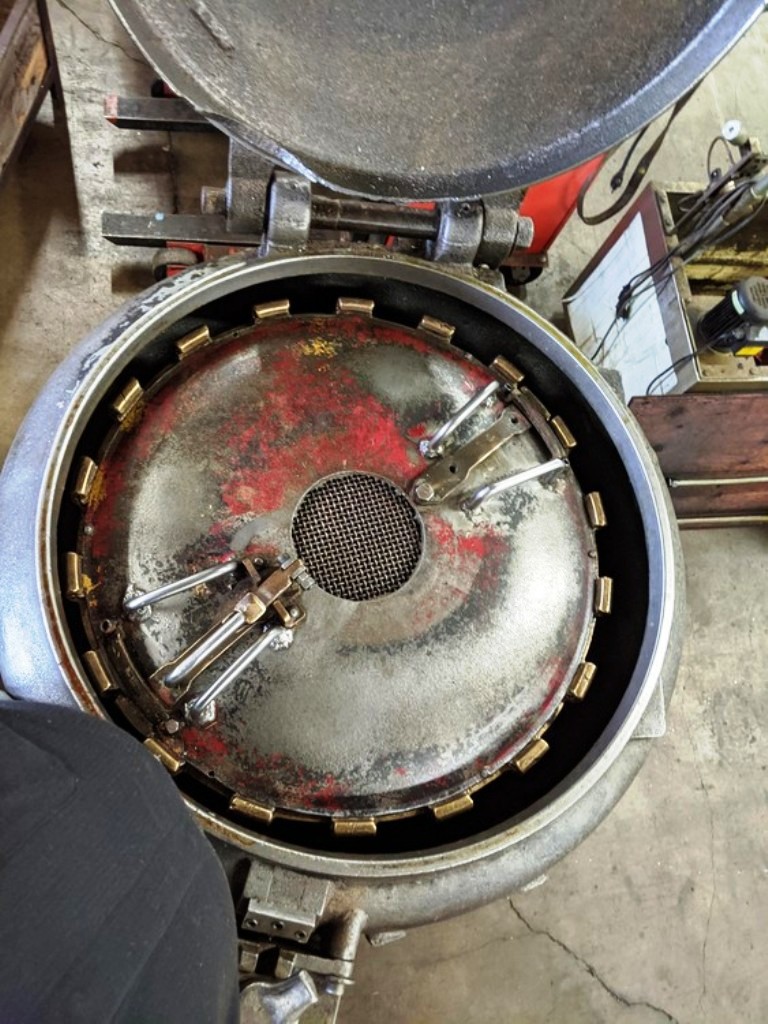

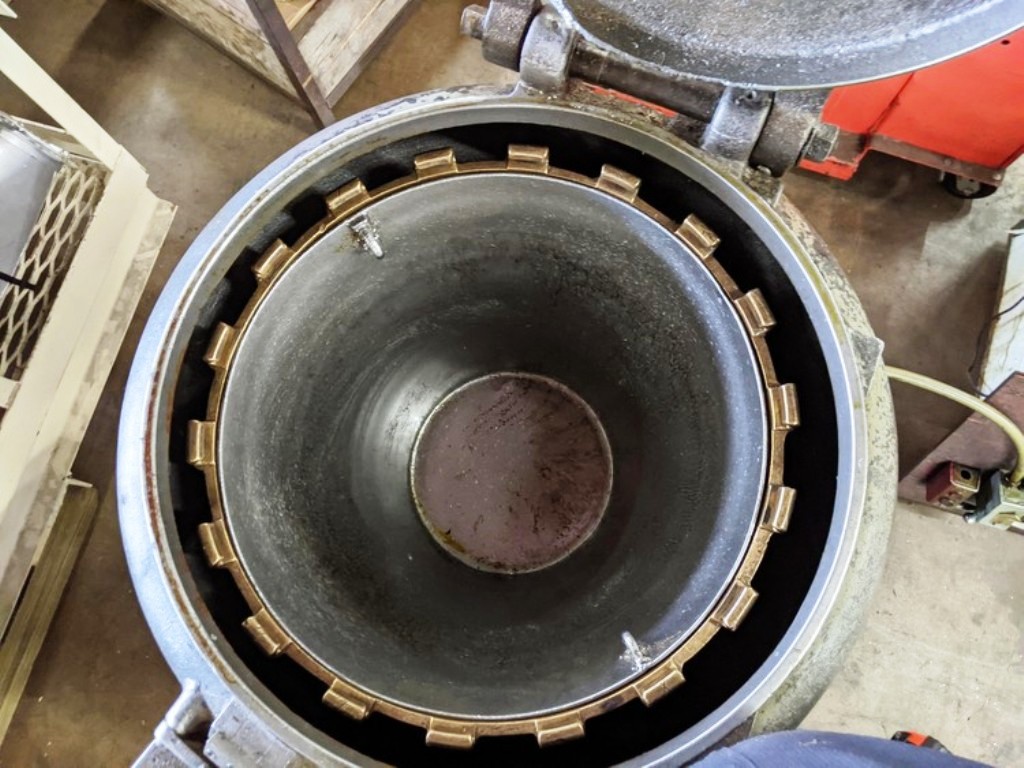

Chip pan 23" x 15", 2.1 cu ft capacity, max 20 loads/hr, max load weight 225 lbs, running speed 1200 RPM, 470 x G. 6 HP motor 230/460/3/60/1775 RPM, lid lock, brake, separate SS oil collection tank with float controlled pump and 1000 lb capacity electric chain hoist. Very good condition.

The Barrett 402-E chip spinner is engineered for optimal efficiency in chip processing, making it an essential addition to any industrial setting where metalworking and machining operations are prevalent. Its robust chip pan measures 23 inches by 15 inches and boasts a generous capacity of 2.1 cubic feet, allowing for the handling of significant volumes of chips and scrap material. With a maximum throughput of 20 loads per hour and a load weight capacity of up to 225 pounds, this chip spinner is designed to enhance productivity while ensuring that operations run smoothly and effectively. The high running speed of 1200 RPM, coupled with a force of 470 times gravity, ensures that chips are efficiently separated from cutting fluids, leading to cleaner and more manageable waste disposal processes.

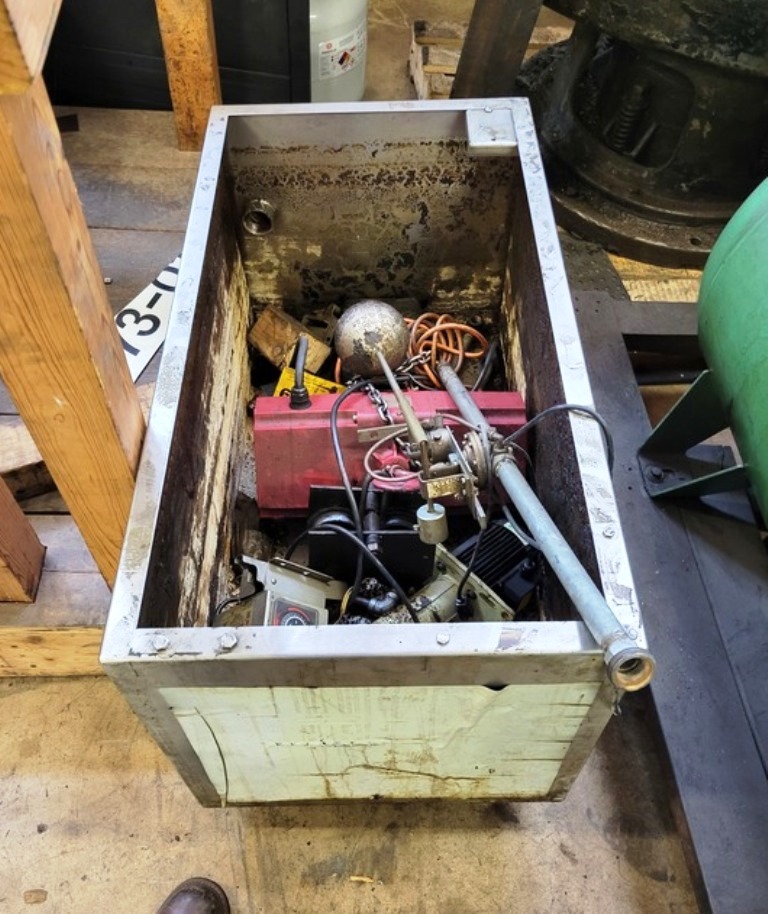

The Barrett 402-E chip spinner is powered by a reliable 6 HP motor that operates at 230/460 volts, 3-phase, and 60 Hz, providing a consistent and powerful performance at 1775 RPM. This motor is designed to handle the demanding requirements of industrial applications, ensuring longevity and minimal downtime. Safety features such as a lid lock and brake enhance operational security, preventing accidental openings during the spinning process. Additionally, the separate stainless steel oil collection tank with a float-controlled pump ensures that collected fluids are efficiently removed, maintaining a clean working environment. The inclusion of a 1000-pound capacity electric chain hoist further adds to the convenience, allowing for easy loading and unloading of materials, thereby streamlining workflow and enhancing overall productivity.
