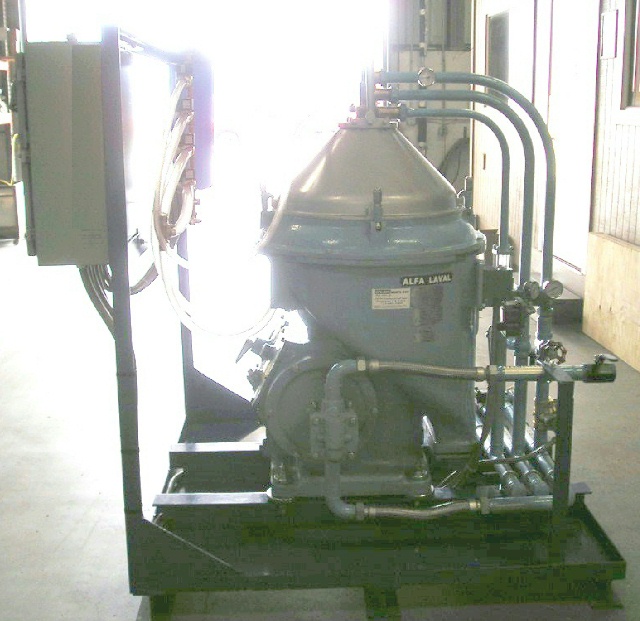

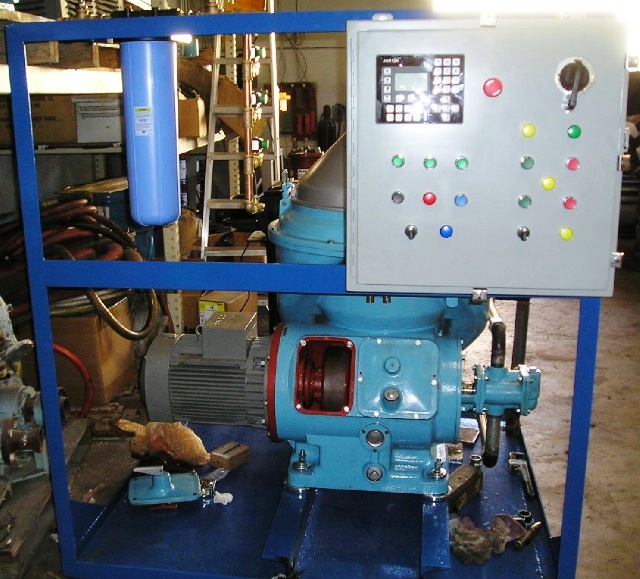

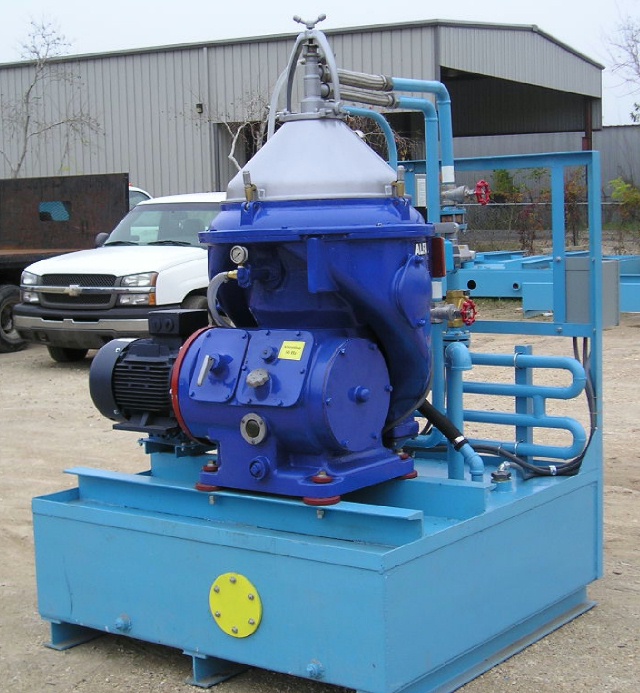

Alfa-Laval WHPX 513 TGD-24-60 oil purifier skid, SS.

Max bowl speed 4032 RPM, rated @ 5000 GPH on light viscosity oil, both liquid phases discharge under pressure 20 HP motor 460/3/60/1760 RPM with tools and manual. Reconditioned with full mechanical warranty. Complete skid mounted system with NEMA 4 control panel, all piped and wired with feed solenoid valve, separate feed pump, water harness and 18"H sludge tank inside 5 x 5' base. Allow 6-8 weeks for delivery.

The Alfa-Laval WHPX 513 TGD-24-60 oil purifier skid, SS. is engineered for high efficiency in the separation of impurities from light viscosity oils, making it an essential component for industries that prioritize the integrity of their lubricants and fuels. With a maximum bowl speed of 4032 RPM, this unit is capable of processing up to 5000 gallons per hour, ensuring that operations can maintain optimal performance without the risk of contamination. The dual-phase discharge system operates under pressure, allowing for effective separation of water and solids from the oil, which is crucial for extending the life of machinery and reducing maintenance costs. The skid-mounted design not only simplifies installation but also enhances mobility within your facility, making it easy to relocate as needed without compromising on performance or safety.

Powered by a robust 20 HP motor operating at 460 volts, 3-phase, and 60 Hz, the Alfa-Laval WHPX 513 TGD-24-60 is built to handle demanding industrial applications. The inclusion of a NEMA 4 control panel ensures that operators can manage the system safely and efficiently, even in challenging environments. All components are pre-piped and wired, which significantly reduces setup time and allows for immediate use upon installation. The system also features a dedicated feed pump and a water harness, along with an 18-inch high sludge tank integrated within a compact 5 x 5-foot base. This thoughtful design not only maximizes space but also enhances the overall operational efficiency of the oil purification process. Furthermore, the reconditioned unit comes with a full mechanical warranty, providing peace of mind and assurance of quality for your investment.

In addition to its impressive technical specifications, the Alfa-Laval WHPX 513 TGD-24-60 oil purifier skid, SS. is designed with user-friendliness in mind. The included tools and manual facilitate easy operation and maintenance, ensuring that your team can quickly address any routine upkeep needs. With a delivery timeframe of 6-8 weeks, you can plan your procurement process accordingly, allowing for seamless integration into your existing operations. This oil purifier skid is not just a piece of equipment; it is a vital asset that contributes to the reliability and efficiency of your industrial processes.
