Description:

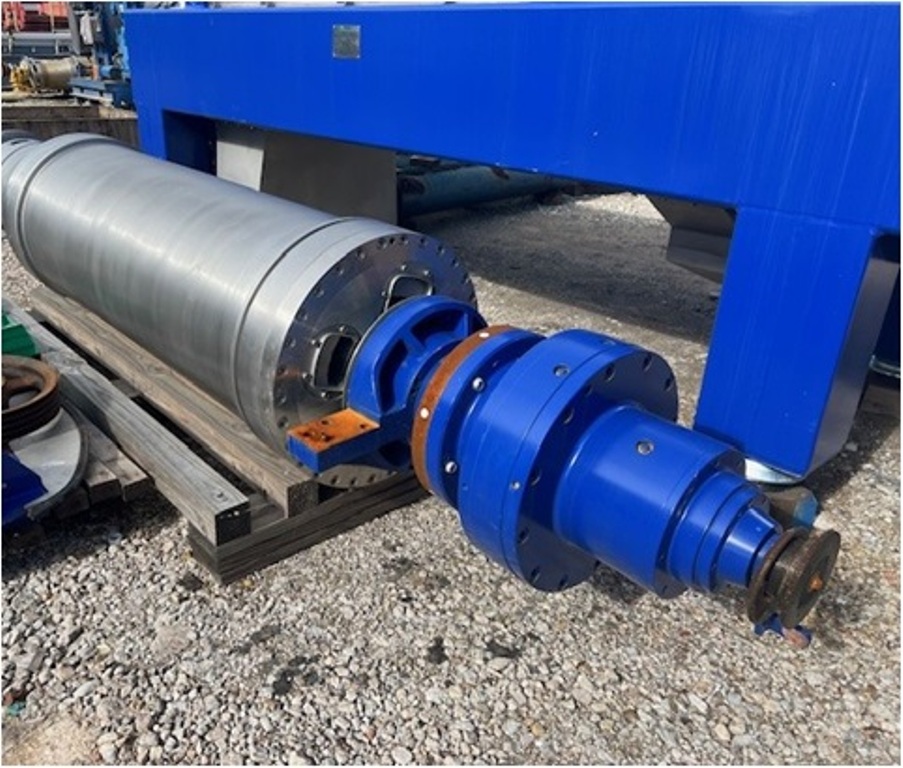

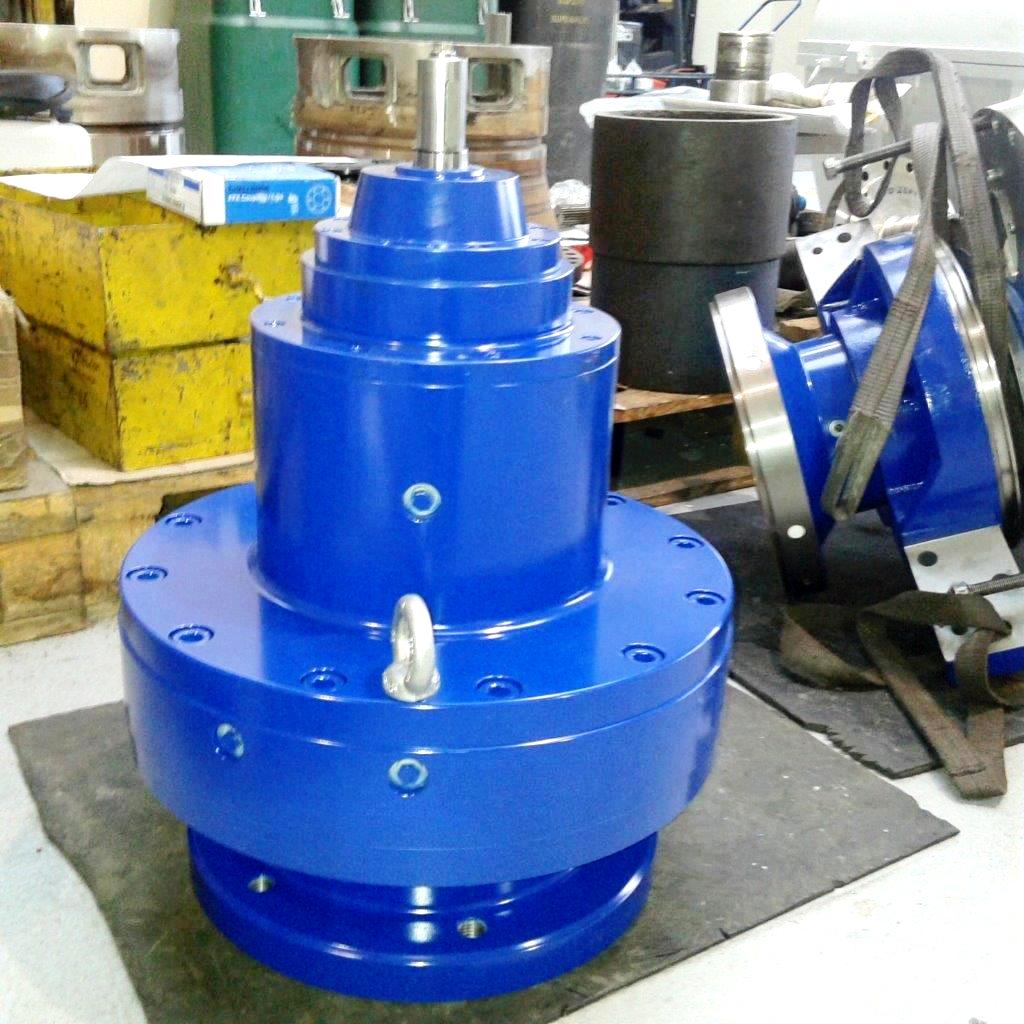

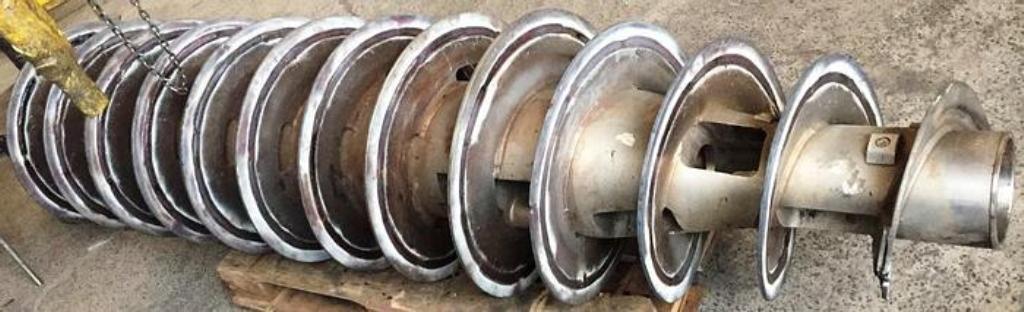

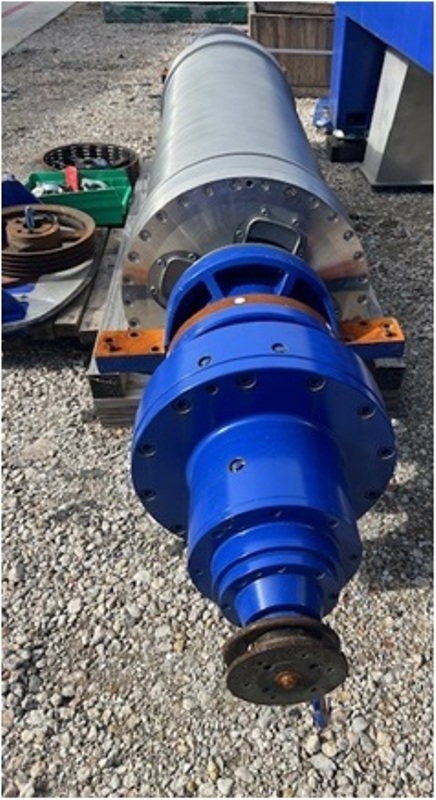

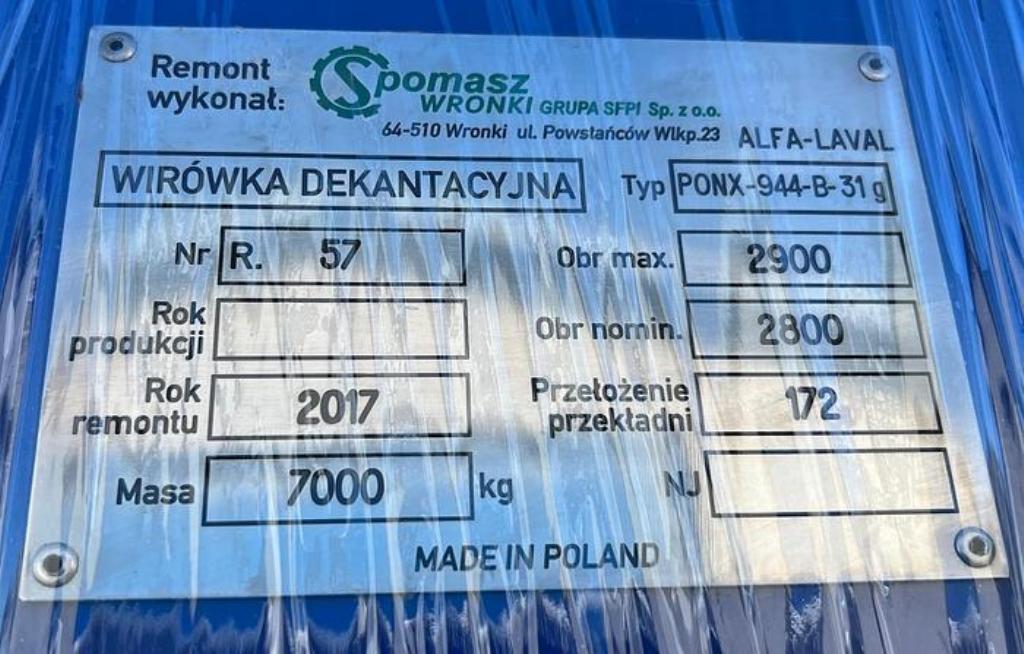

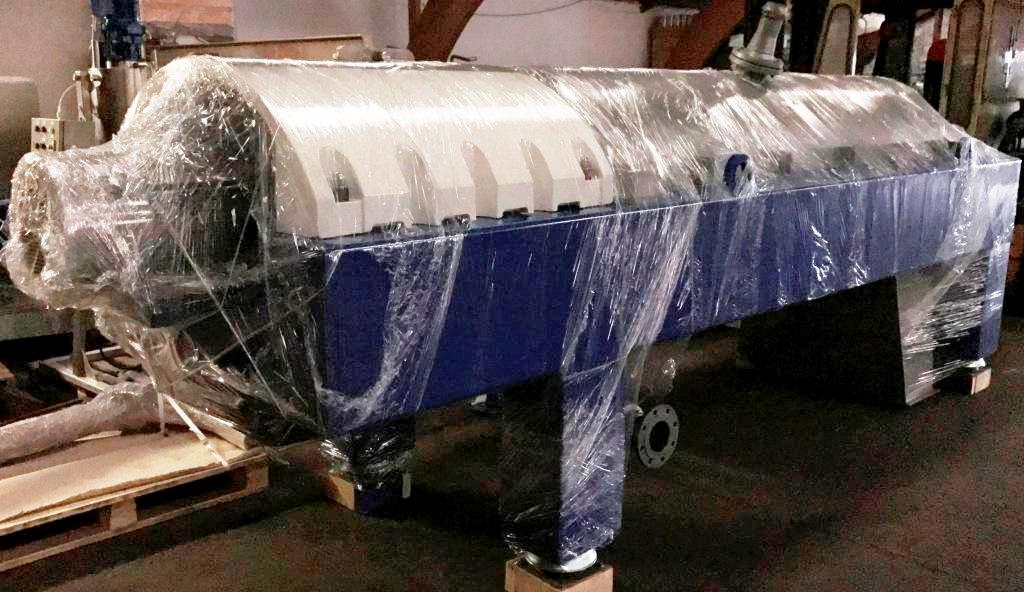

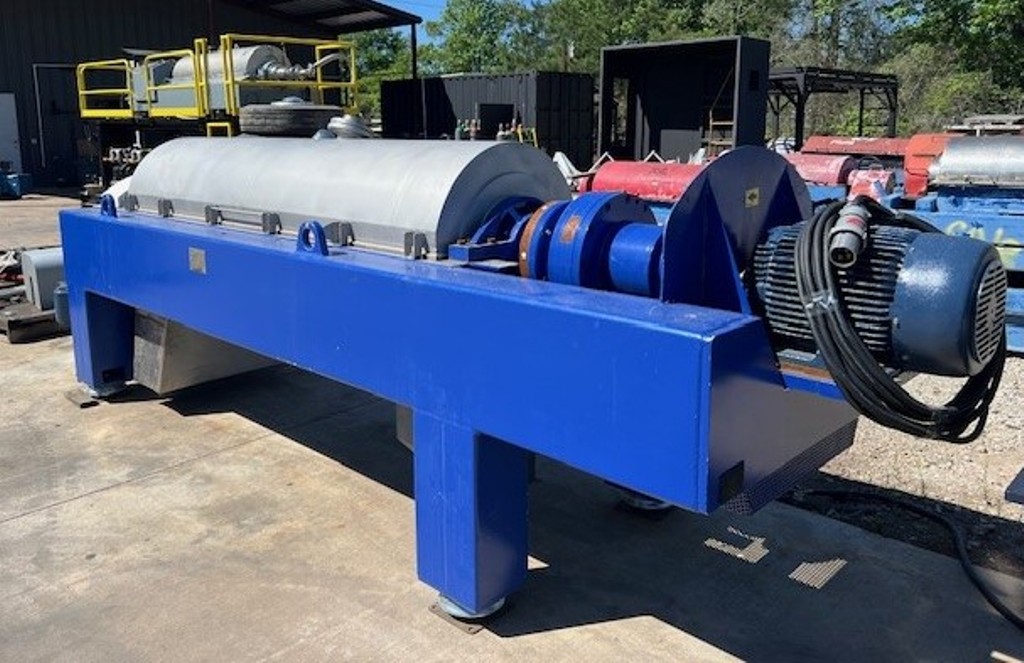

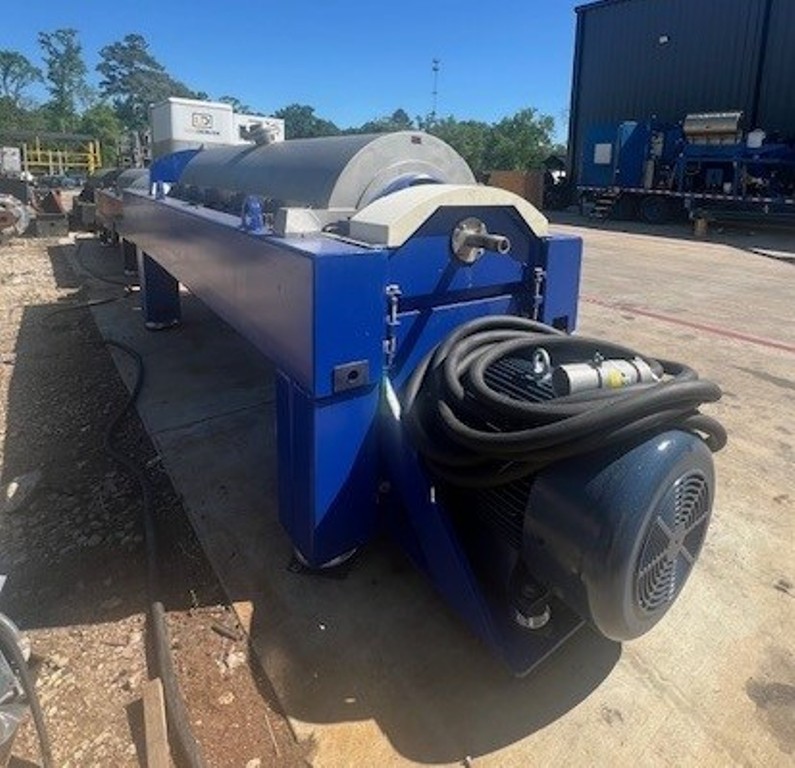

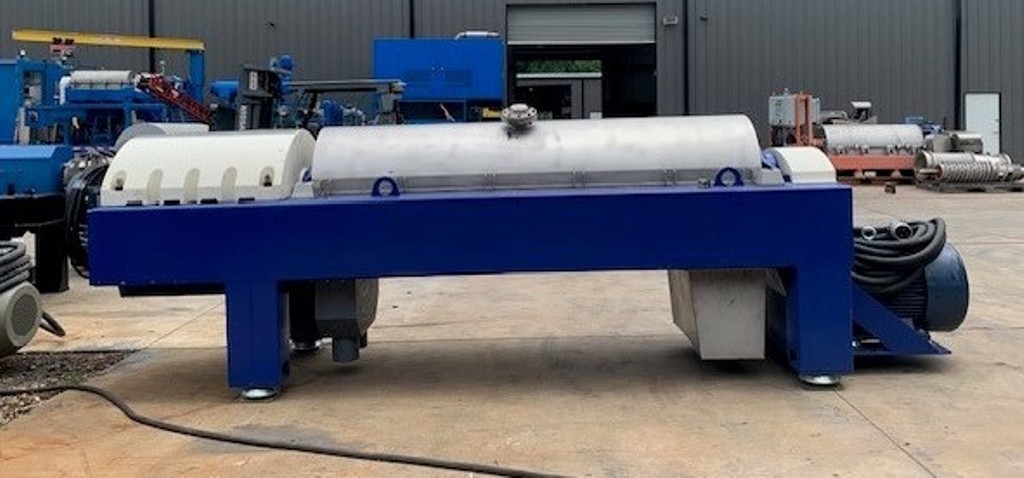

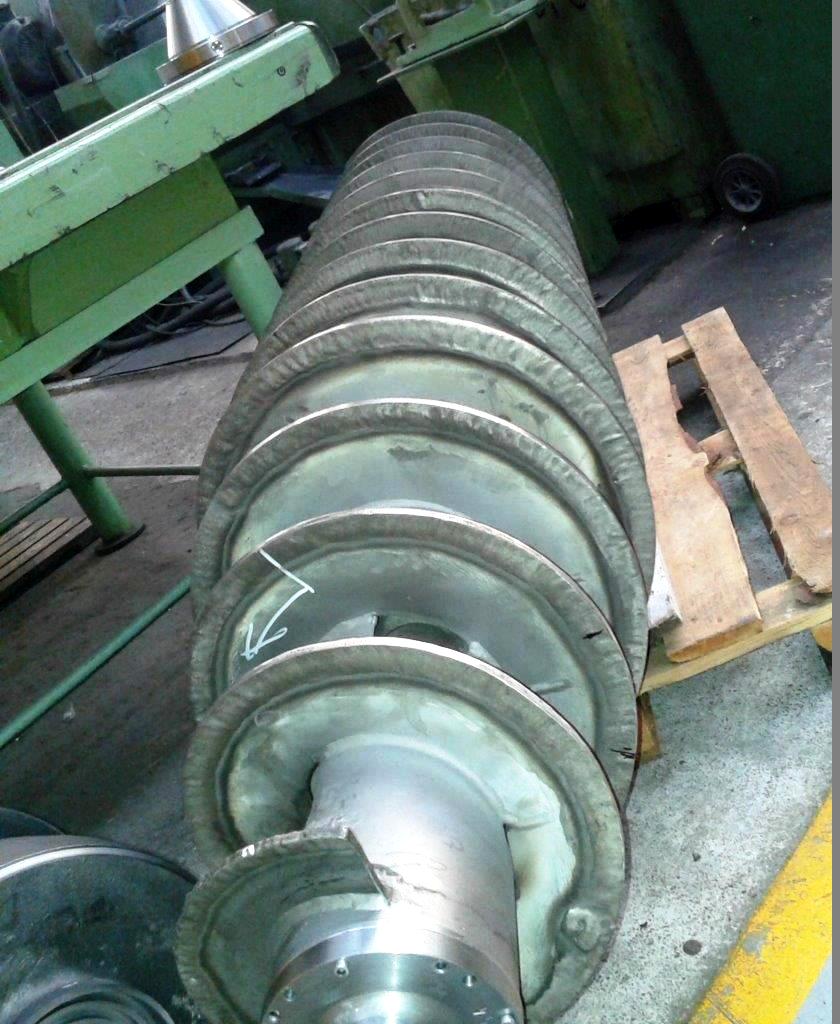

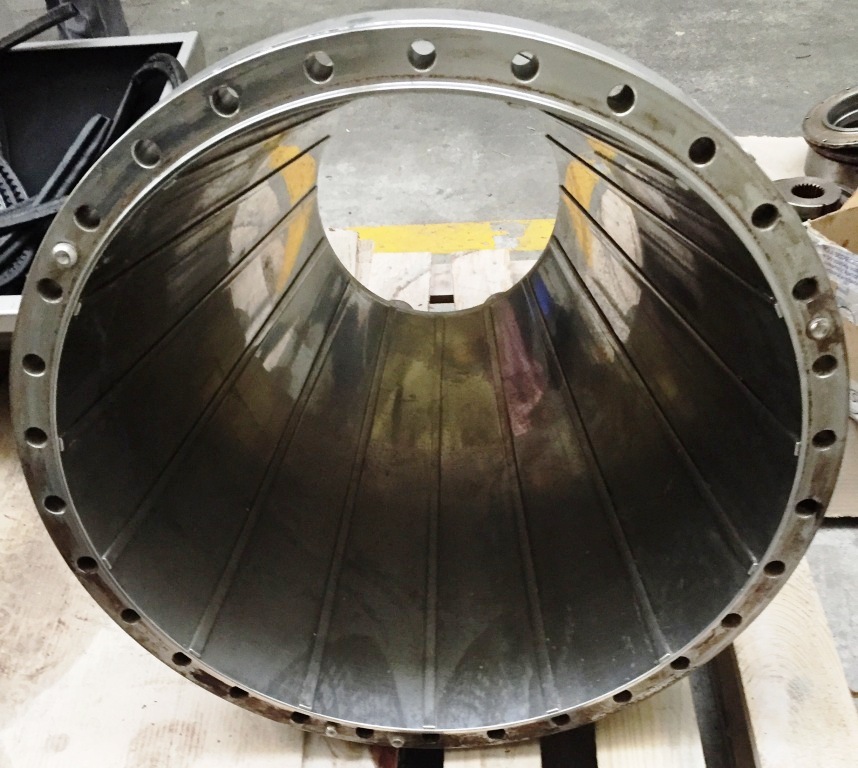

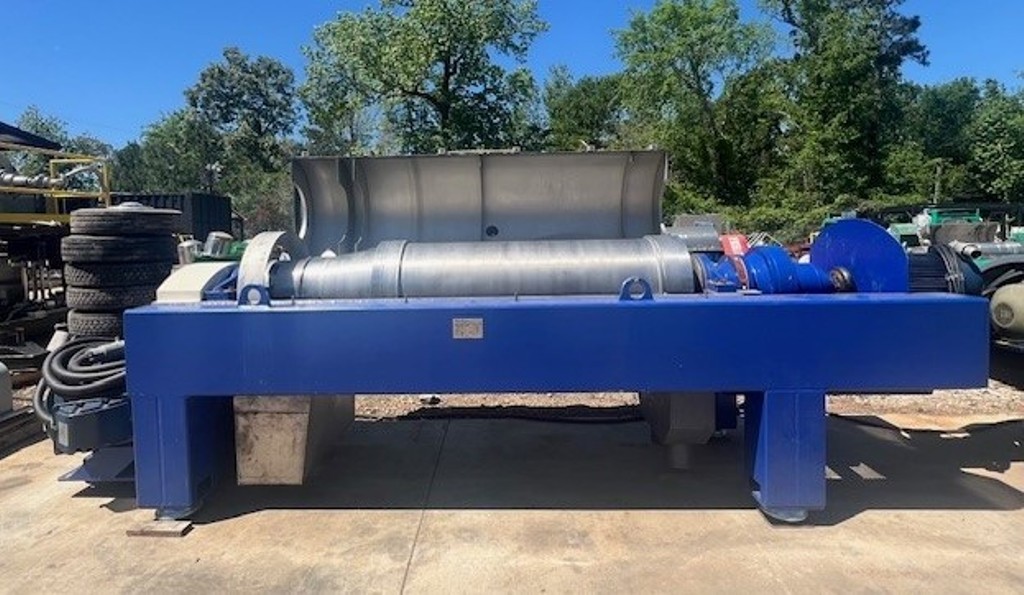

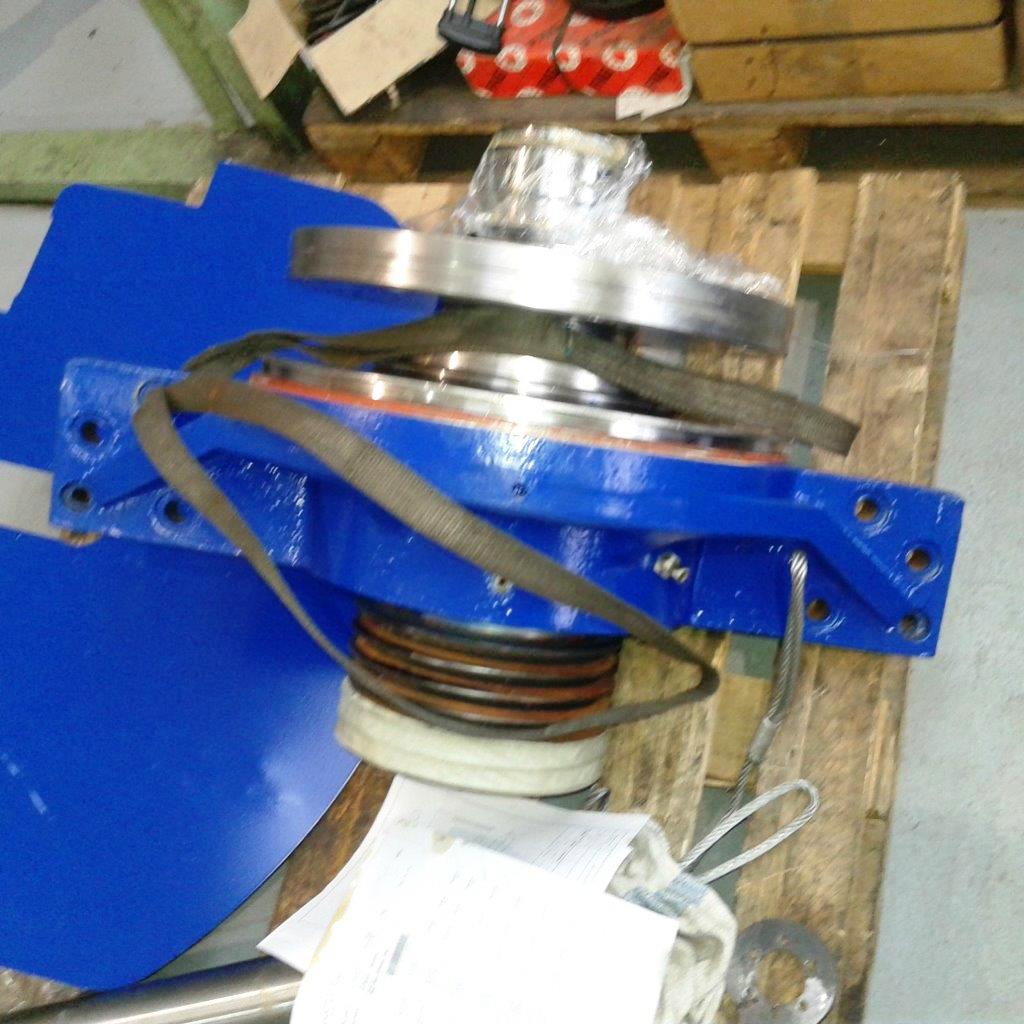

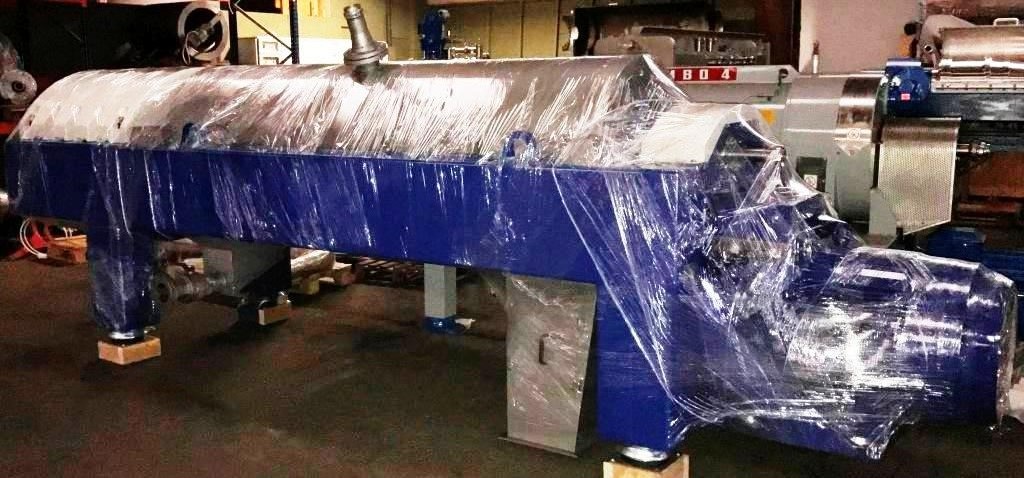

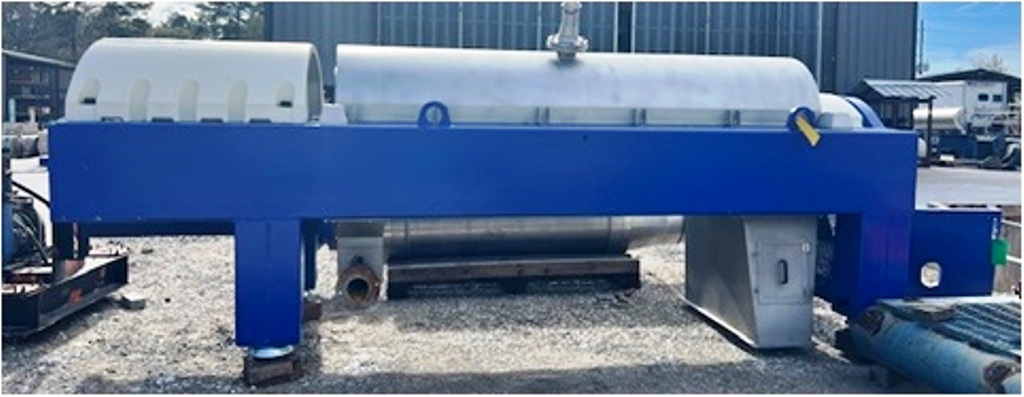

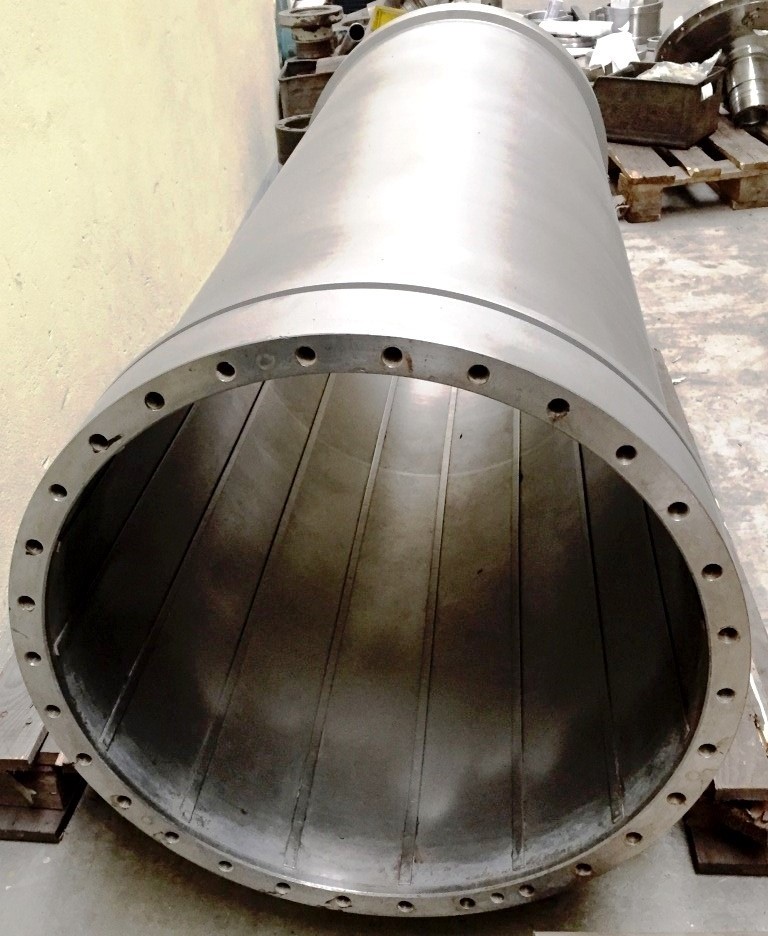

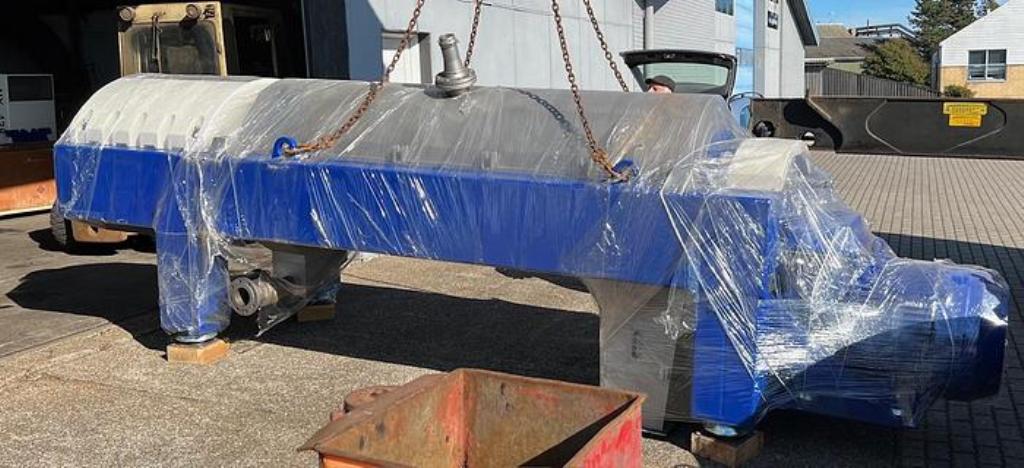

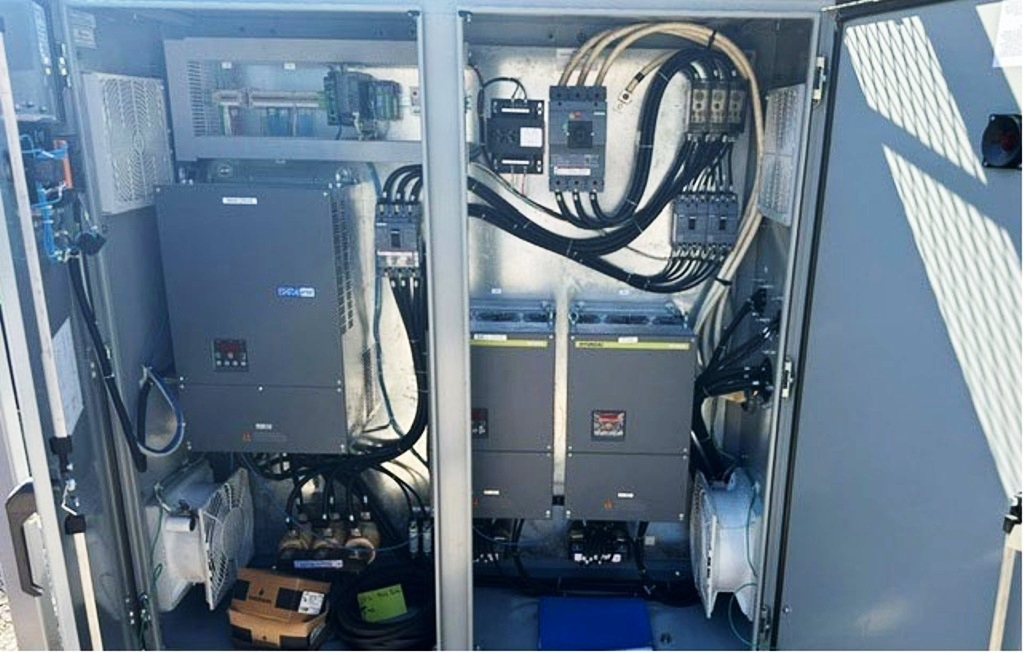

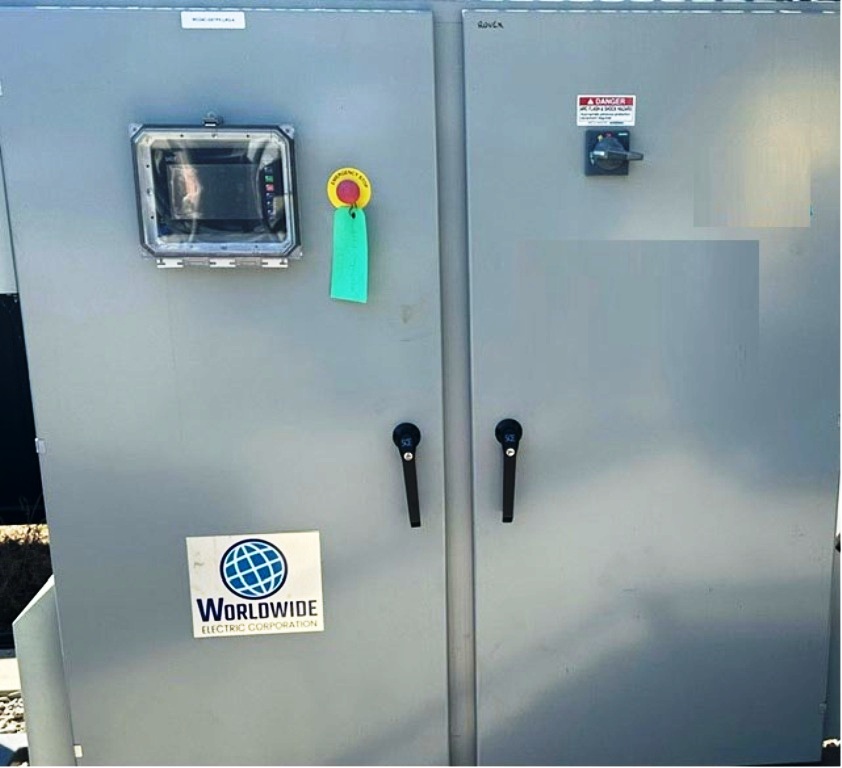

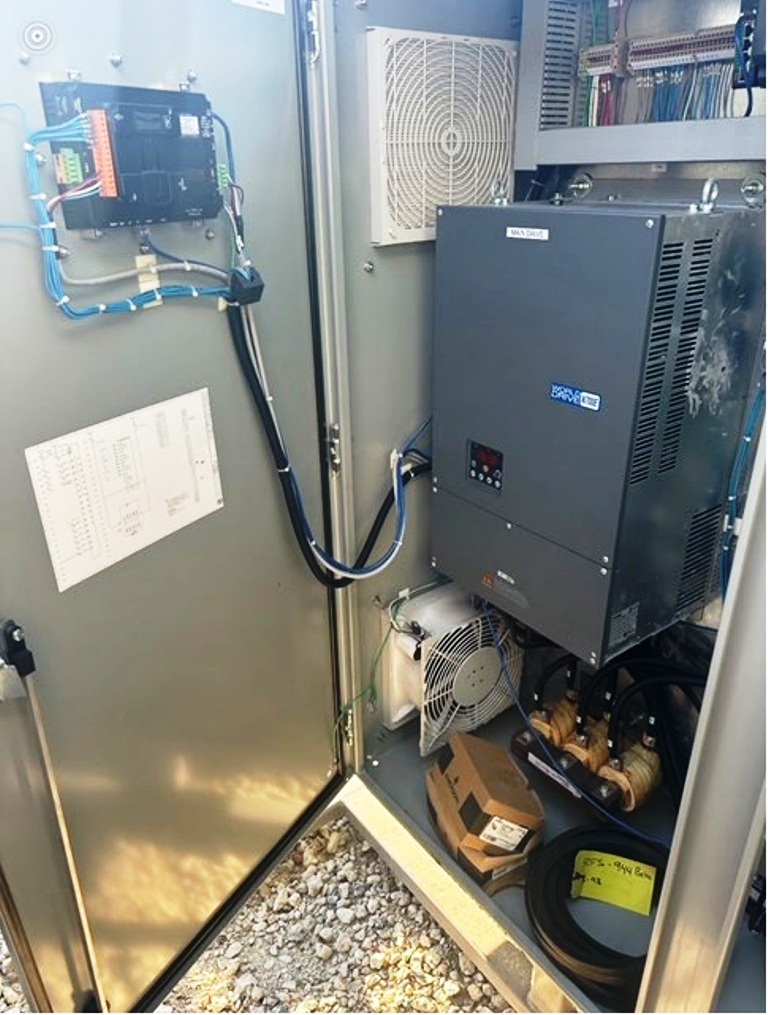

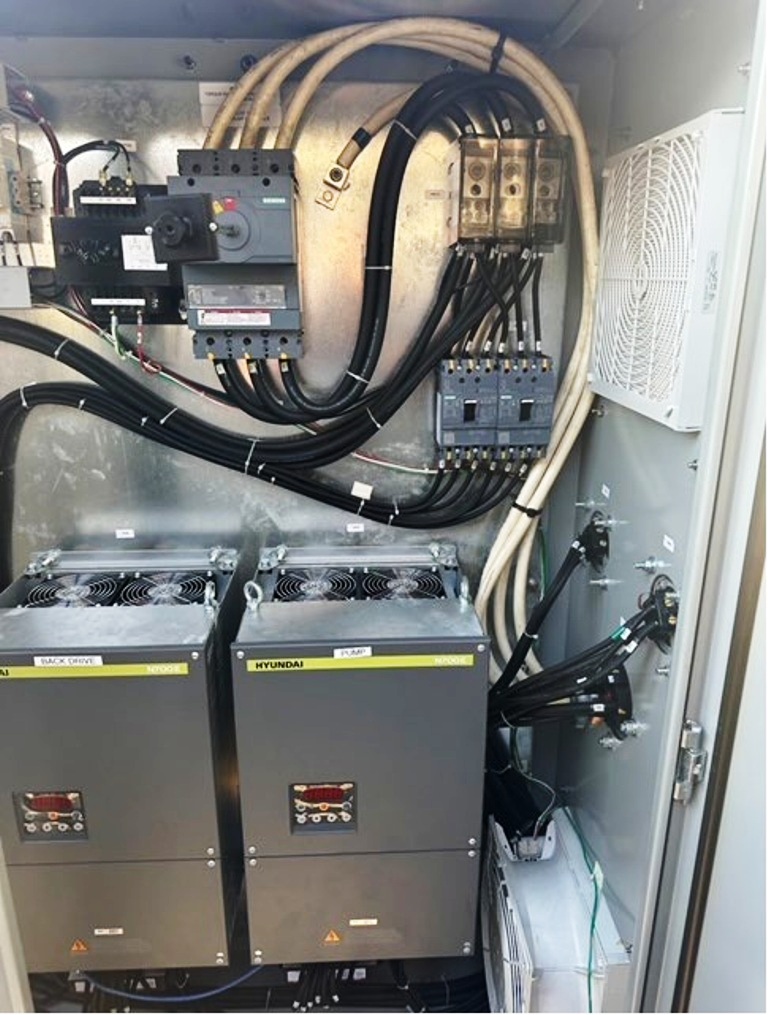

Max bowl speed 2900 RPM, 2703 x G, 574 x 2438mm (22.6 x 96") bowl ID. 10 degree contour bowl. STC-tiled feed zone and cake ports, 190mm single lead STC-tiled conveyor, new 150 HP motor 460/3/60/1775 RPM, 172:1 12kNm Sumitomo gearbox, new 30 HP backdrive, grease lubricated main bearings, feed tube and guards. On stand with chutes. 2002 vintage. Reconditioned to "as new" and test run in 2017. No warranty. Brand new Worldwide VFD panel with PLC and touch screen HMI: 200 amp main drivve, 60 amp backdrive, 60 amp pump drive. 480 volt, 3 phase, dual 100 amp breakers for incoming power.

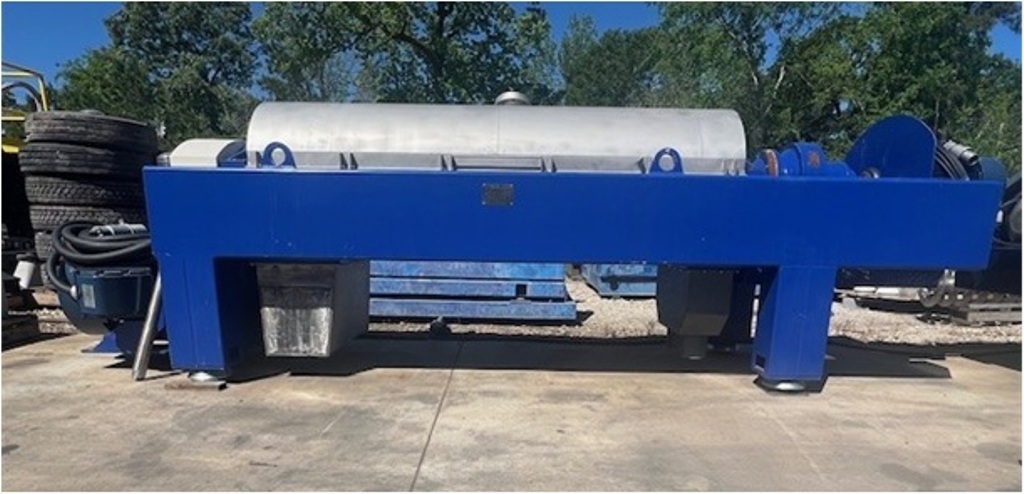

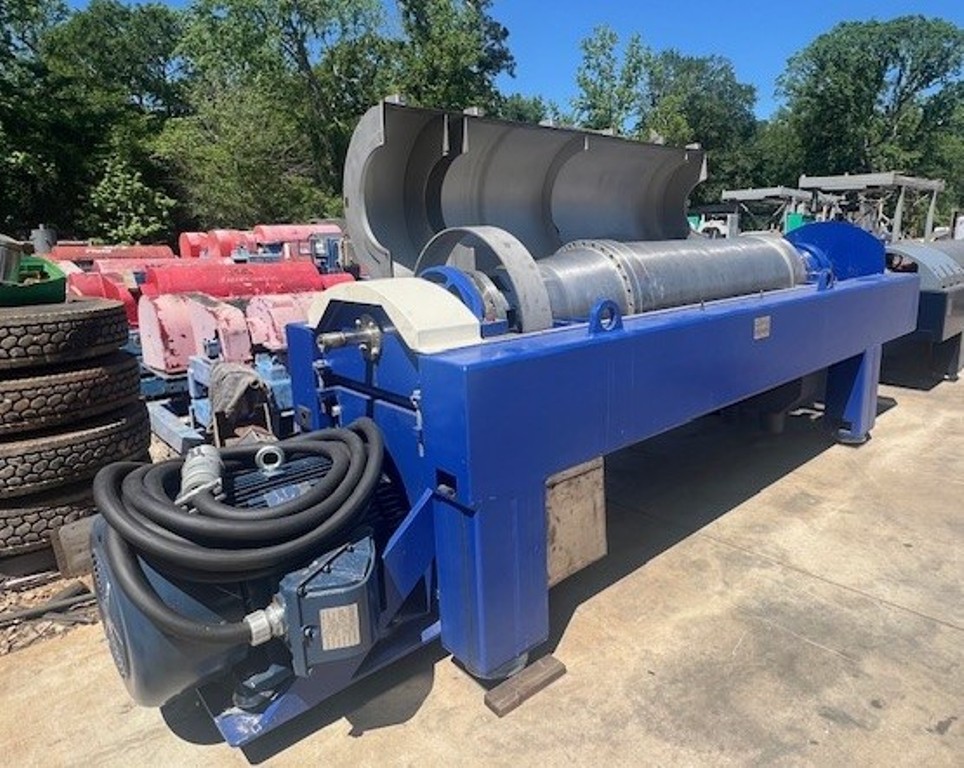

The Alfa-Laval PONX 944B-31G decanter centrifuge, 316SS, is engineered for high-efficiency separation processes, making it an ideal choice for industries such as food processing, wastewater treatment, and chemical manufacturing. With a maximum bowl speed of 2900 RPM and a centrifugal force of 2703 x G, this decanter centrifuge is capable of handling large volumes of feed material while ensuring optimal separation of solids and liquids. The 10-degree contour bowl design enhances the separation process by providing a larger surface area for the solids to settle, thus improving the overall efficiency of the operation. The STC-tiled feed zone and cake ports are designed to minimize wear and tear, prolonging the lifespan of the equipment and reducing maintenance costs over time.

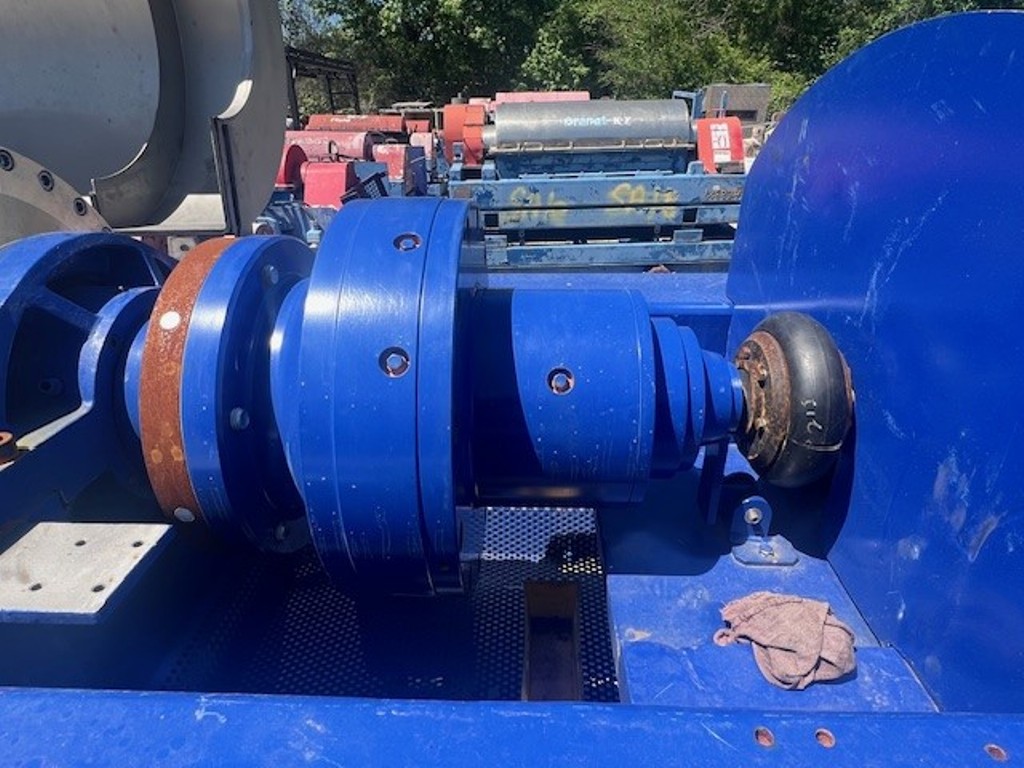

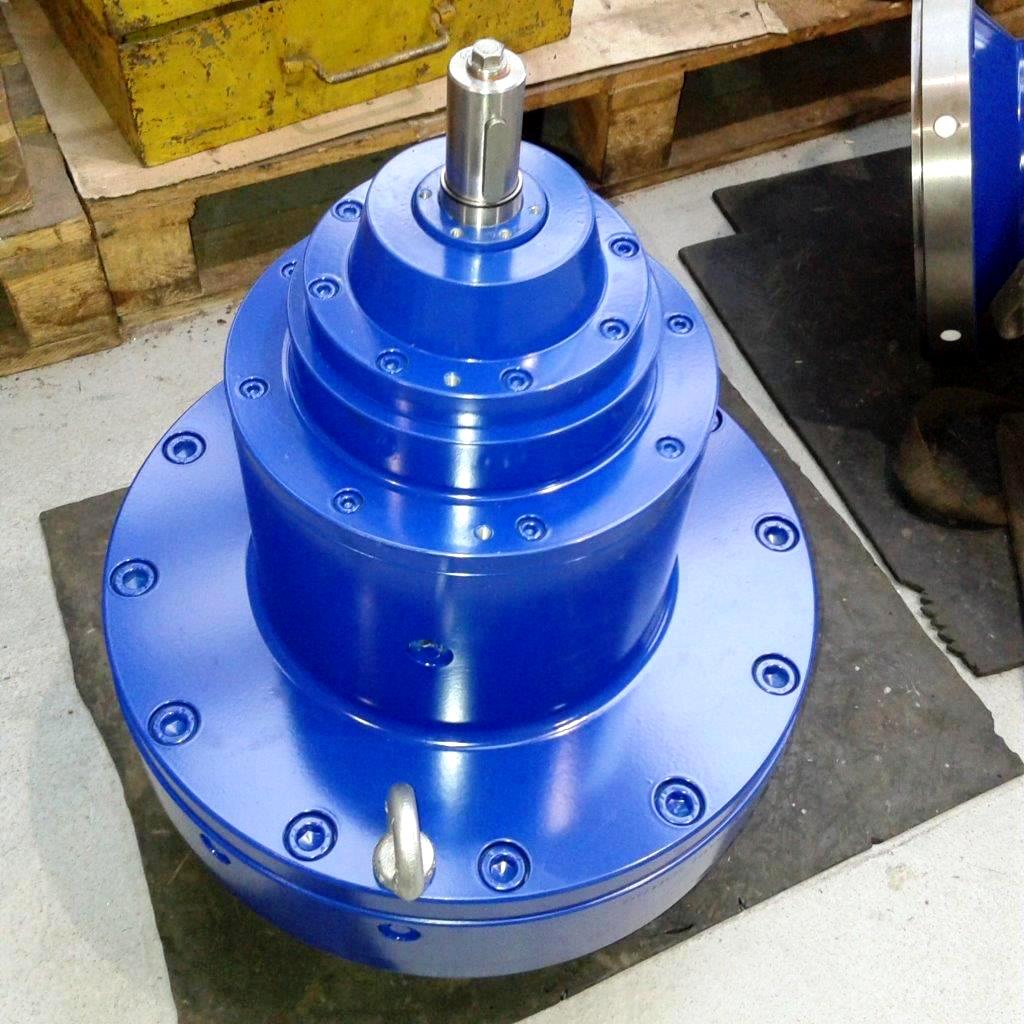

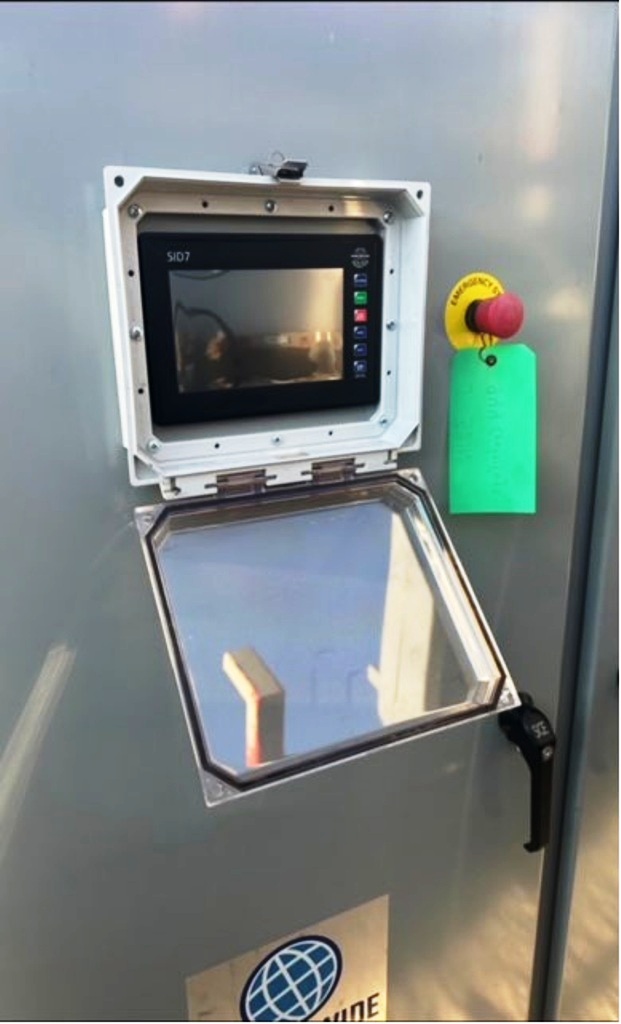

This decanter centrifuge is equipped with a robust 150 HP motor, coupled with a 172:1 12kNm Sumitomo gearbox, ensuring reliable and consistent performance. The addition of a new 30 HP backdrive further enhances the operational flexibility of the centrifuge, allowing for precise control over the separation process. The grease-lubricated main bearings contribute to the overall durability of the machine, reducing the need for frequent maintenance and ensuring smooth operation. Furthermore, the unit comes with a brand new Worldwide VFD panel that features a PLC and touch screen HMI, providing operators with an intuitive interface for monitoring and controlling the centrifuge's performance. With dual 100 amp breakers for incoming power, this equipment is designed for safety and reliability in demanding industrial environments.
Key Features:
High-Speed Performance, Durable Construction, Advanced Control System, Efficient Separation, Low Maintenance Requirements
