Description

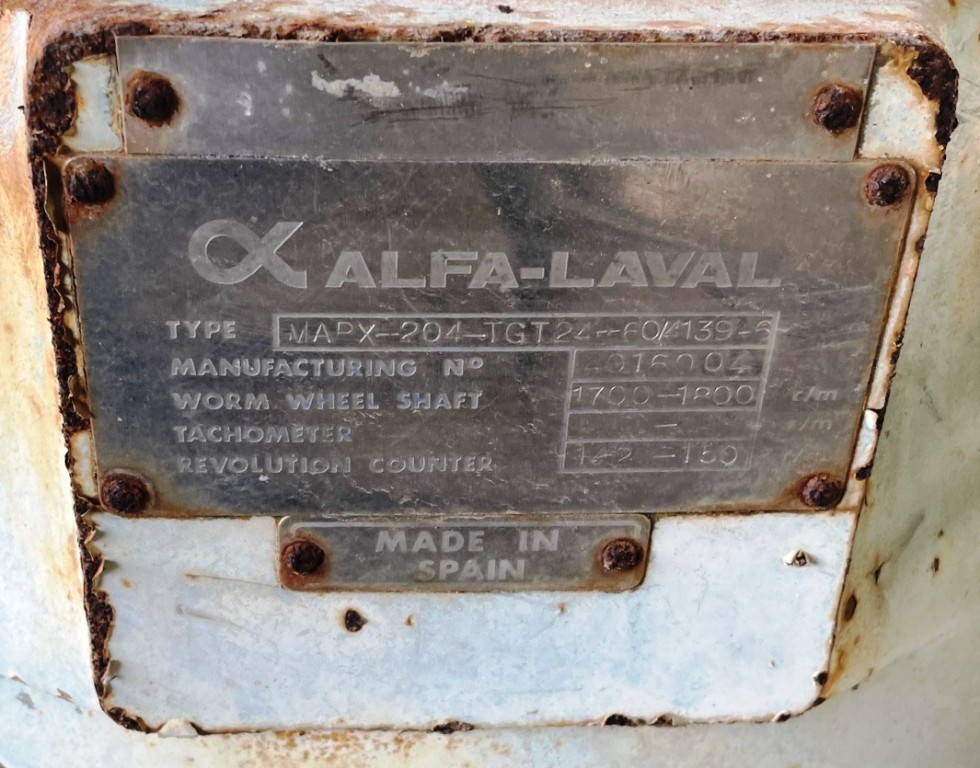

The Alfa-Laval MAPX 204 TGT-29-60 oil purifier is designed for efficient separation of oil and water mixtures, making it suitable for various applications in industrial settings. This model, with Serial Number 2983831 - now 4016004, features a maximum bowl speed of 8500 RPM, which facilitates effective separation of liquid phases under pressure. The unit is rated for a throughput of 500 gallons per hour (GPH) on light viscosity oil, specifically at 40 SSU at 100°F, ensuring reliable performance in demanding environments.
Constructed from 316 stainless steel, the Alfa-Laval MAPX 204 TGT-29-60 offers durability and resistance to corrosion, making it ideal for processing oils in harsh conditions. The machine is powered by a 3 HP motor that operates at 230/460 volts, 3-phase, 60 Hz, and 1800 RPM. This configuration allows for flexibility in installation and operation across various facilities. The unit is provided with necessary tools and a manual, although it does not include a control panel, which may require additional integration depending on the specific application.
Primary Use
Used for separating oil from water and other contaminants in industrial oil processing.
Technical Specifications
- Bowl Speed: 8500 RPM
- Rated Capacity: 500 GPH
- Motor Power: 3 HP
- Voltage: 230/460 V
- Phase: 3
- Frequency: 60 Hz
- Motor RPM: 1800
- Construction Material: 316 Stainless Steel
Key Features
- Bowl Speed
- Construction Material
- Motor Specifications
- Separation Efficiency
- Discharge Mechanism
Applications
- Oil refining
- Marine applications
- Waste oil processing
- Lubrication oil purification
Product Details
The Alfa-Laval MAPX 204 TGT-29-60 features a robust construction from 316 stainless steel, ensuring longevity and resistance to various chemicals. Its design allows for both liquid phases to be discharged under pressure, enhancing operational efficiency.
