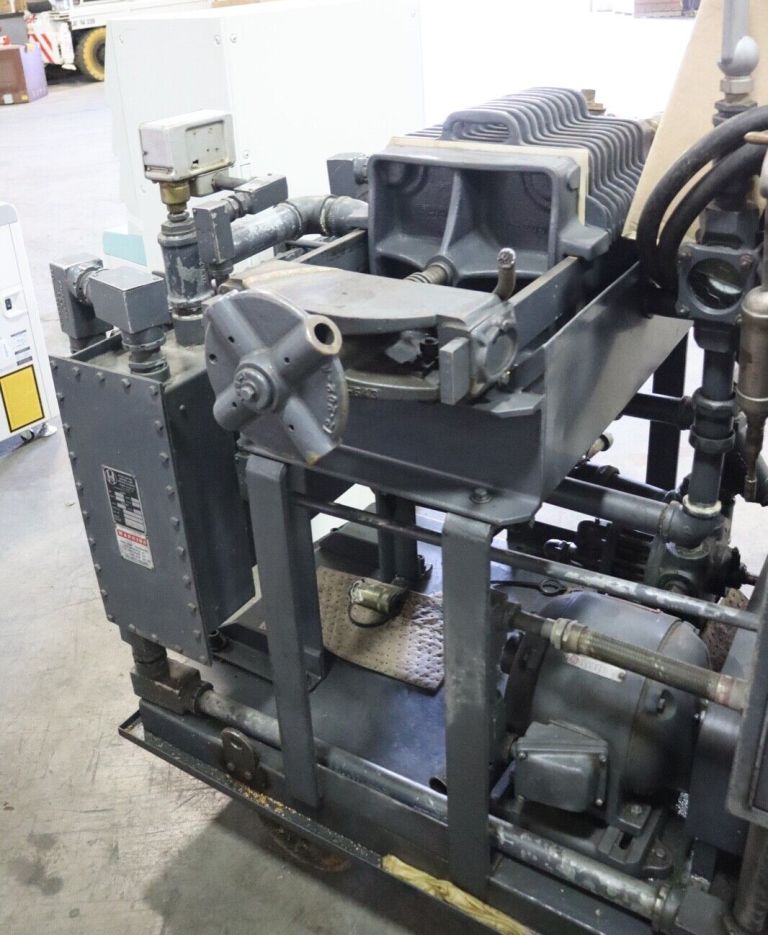

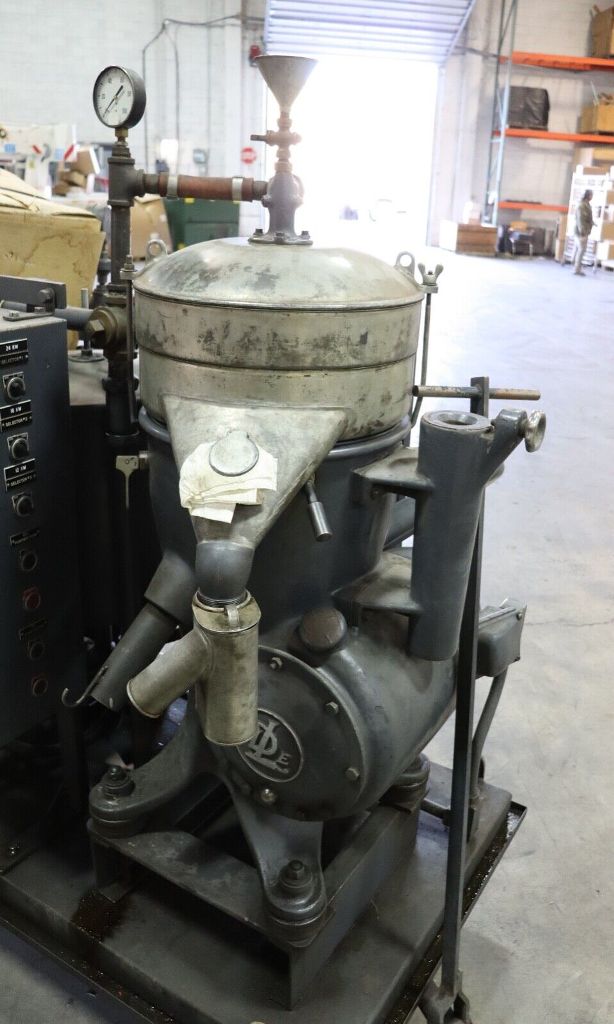

Alfa-Laval MAB 206S-24 oil cleaning module, SS.

Max bowl speed 6400 RPM, sludge capacity 0.9 gallons, light phase discharged under pressure, 70PSI max @ 1600 GPH, heavy phase open, rated @ 2120 GPH light viscosity oil (40 SSU @ 100F). Includes feed pump, removable SS sludge holder, 7.5 HP motor 230/460/3/60/1800 RPM/ODP, strainer, sight glass, 2 sample cocks, pressure gauge, thermometer, seal water connection with flow indicator, revolution counter, control panel and 54 KW Hynes heater, plate and frame filter, unitized on a portable cart. Excellent condition.

The Alfa-Laval MAB 206S-24 oil cleaning module, SS. is engineered for high-efficiency oil cleaning, making it an essential component for industries that rely on the purity of lubricants and fuels. With a maximum bowl speed of 6400 RPM, this module effectively separates contaminants from oil, ensuring that your machinery operates smoothly and efficiently. The sludge capacity of 0.9 gallons allows for extended operation before needing to empty the sludge holder, which is removable for easy maintenance. The system is designed to discharge the light phase under pressure, achieving 70 PSI maximum at a flow rate of 1600 GPH. This capability is crucial for maintaining optimal oil quality and prolonging the life of your equipment, particularly when dealing with heavy phase oils rated at 2120 GPH for light viscosity oil (40 SSU at 100°F).

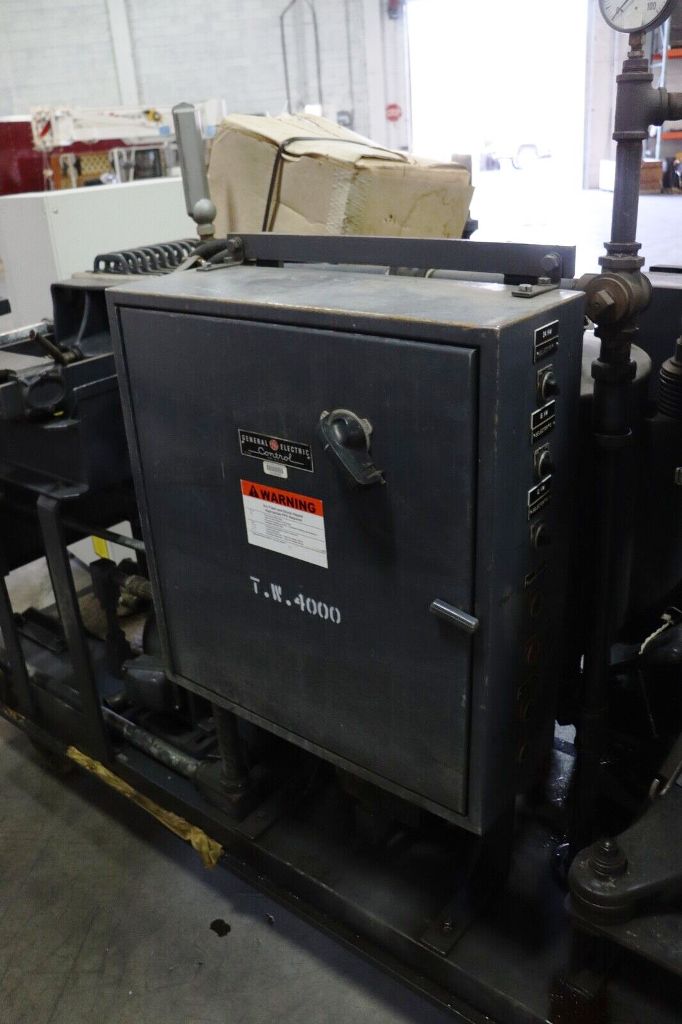

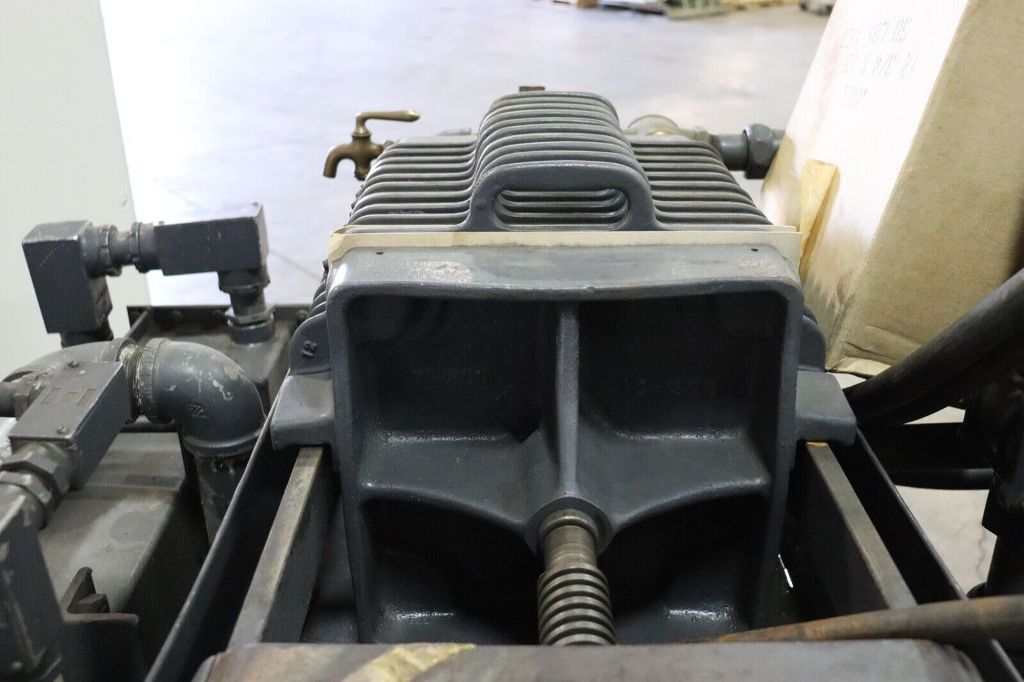

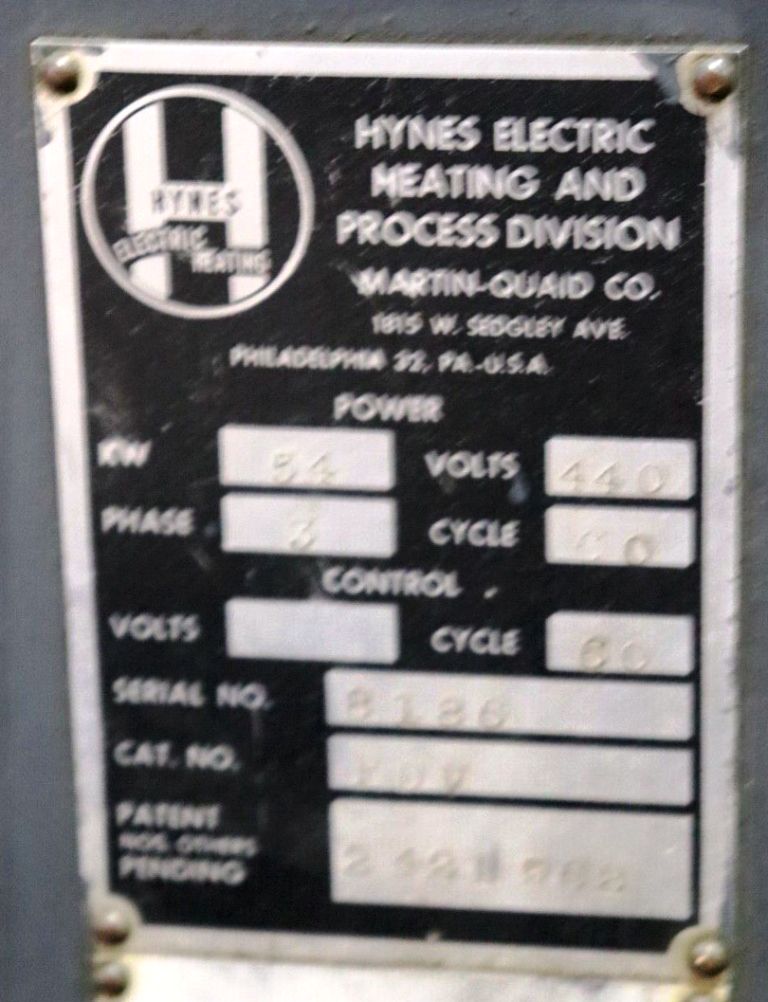

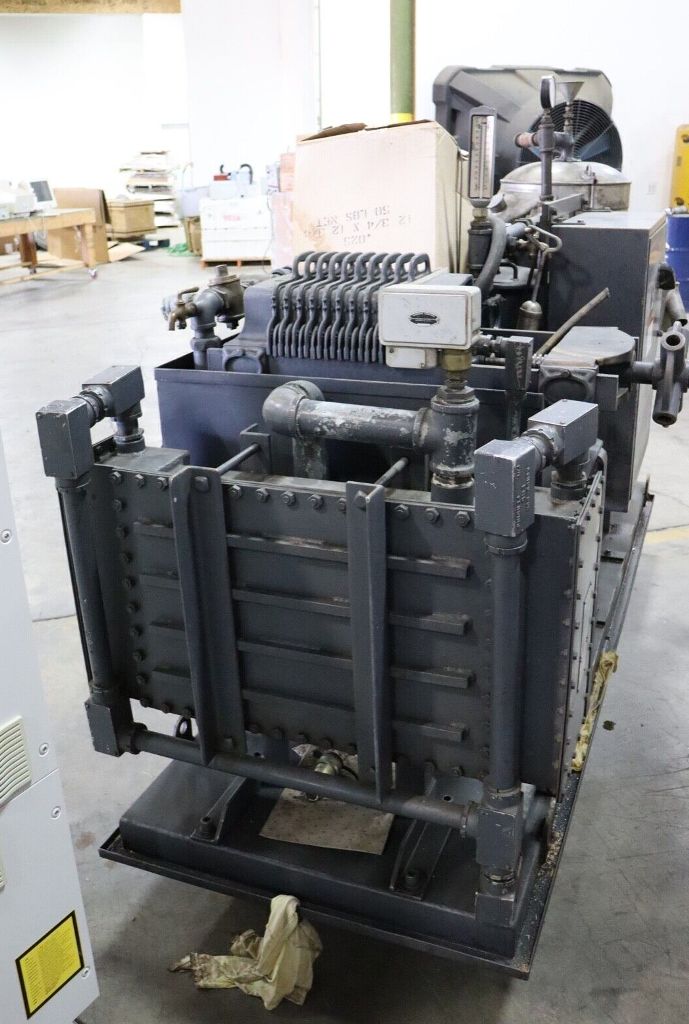

The Alfa-Laval MAB 206S-24 is equipped with a robust 7.5 HP motor that operates at 230/460V, 3-phase, 60Hz, and 1800 RPM, ensuring reliable performance in demanding environments. The inclusion of a strainer, sight glass, and two sample cocks allows for real-time monitoring of the oil quality, while the pressure gauge and thermometer provide critical operational data. Additionally, the seal water connection with a flow indicator enhances the reliability of the cleaning process. The integrated control panel simplifies operation, allowing users to easily manage the system's functions. The unit is also equipped with a 54 KW Hynes heater and a plate and frame filter, which work together to optimize the cleaning process. Mounted on a portable cart, this module offers flexibility and ease of use, making it suitable for various industrial applications.
