Description:

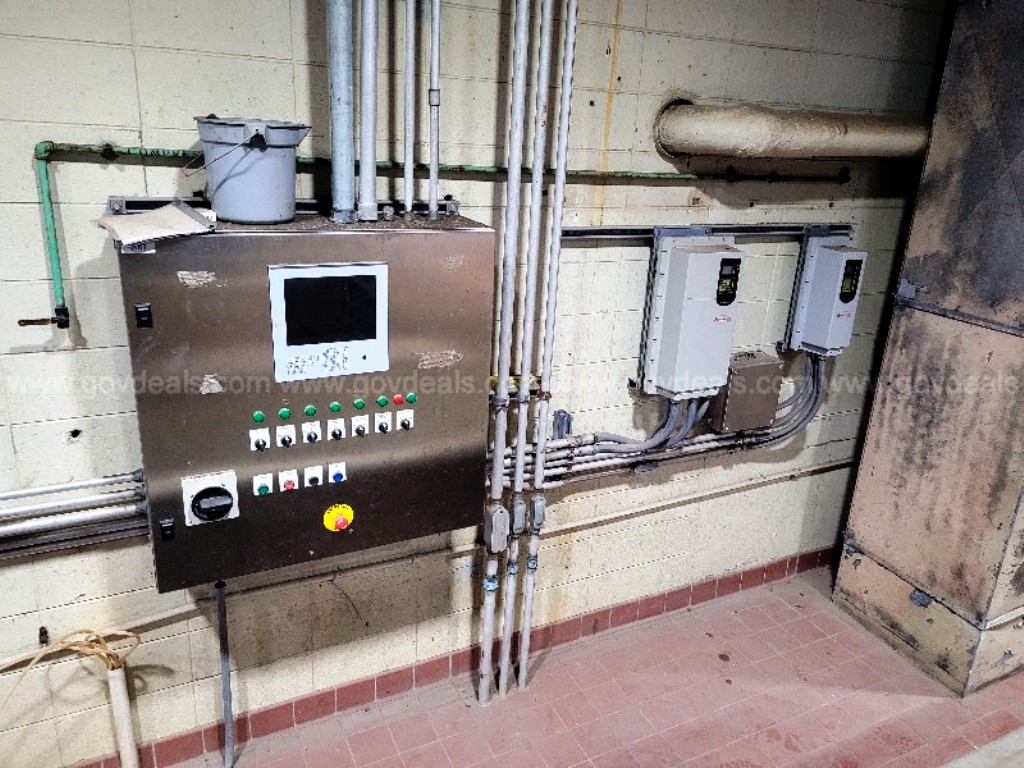

Max bowl speed 2600 RPM, 2004 Gs, co-current design. Bowl ID: 531 x 2298mm = 20.9 x 90.5". Rated @ 8-25 m3/hr (110 GPM max), 800 kg max dry solids. STC tiles on feed zone, conveyor and cake discharge ports, 30 KW ABB main drive 440/3/60/1750 RPM, 7.5 KW backdrive, feed tube, guards, lube system and PLC control panel with VFD for each motor. Prior use: Wastewater treatment. 2010 vintage. Very good condition.

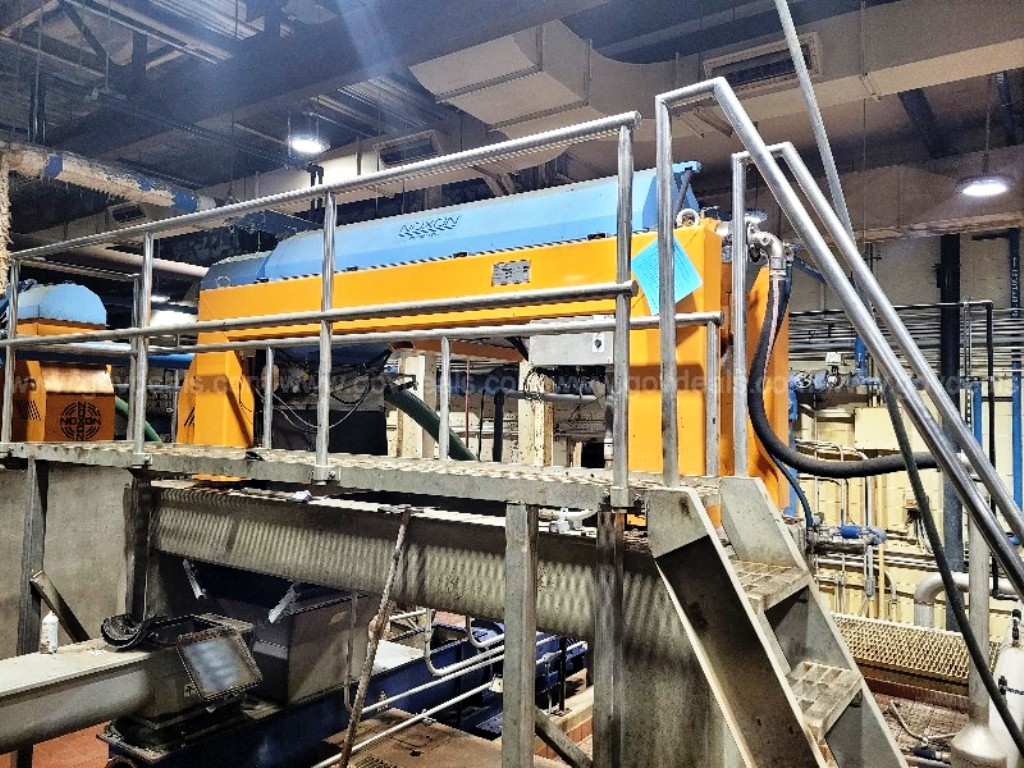

The (2) Noxon DC-20 ELHSAPLM decanter centrifuges, epoxy-coated CS, are engineered to deliver exceptional performance in the separation of solids from liquids, making them ideal for applications in wastewater treatment and other industrial processes. With a maximum bowl speed of 2600 RPM and the ability to generate up to 2004 Gs, these centrifuges are designed to efficiently handle a wide range of materials. The co-current design enhances the separation process, allowing for optimal throughput with a rated capacity of 8-25 m3/hr (110 GPM max) and a maximum dry solids handling capability of 800 kg. The large bowl dimensions, measuring 531 x 2298 mm (20.9 x 90.5 inches), provide ample space for effective separation, ensuring that the equipment meets the rigorous demands of industrial applications.
Constructed with durability in mind, the epoxy-coated carbon steel material of the (2) Noxon DC-20 ELHSAPLM decanter centrifuges ensures resistance to corrosion and wear, extending the lifespan of the equipment even in challenging environments. The inclusion of STC tiles on the feed zone, conveyor, and cake discharge ports further enhances the durability and efficiency of the centrifuges, minimizing maintenance needs and downtime. Each unit is powered by a robust 30 KW ABB main drive motor operating at 440/3/60/1750 RPM, complemented by a 7.5 KW backdrive. The integrated PLC control panel with variable frequency drives (VFD) for each motor allows for precise control over the operation, enabling users to optimize performance based on specific processing requirements. With a vintage of 2010 and in very good condition, these centrifuges represent a reliable and high-performance solution for industrial separation needs.
Key Features:
High-Speed Performance, Durable Construction, Efficient Solid-Liquid Separation, Advanced Control System, Versatile Applications
